Description:The Intersil ISL43140-ISL43142 devices are CMOS, precision, quad analog switches designed to operate from a single +2V to +12V supply or from a ±2V to ±6V supply. Targeted applications include battery powered equipment that benefit from the devices' low power consumption (1µW), low leakage currents (1nA max), and fast switching speeds (tON = 30ns, tOFF = 18ns). A 12Ω maximum RON flatness ensures signal fidelity, while channel-to-channel mismatch is guaranteed to be less than 2. 5Ω. The 3mm x 3mm Quad No- Le
A good PCB layout for the ISL43141IRZ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output capacitor should be selected based on the specific application requirements, and the input capacitor should be chosen to ensure a stable input voltage. It's also recommended to add a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
The ISL43141IRZ is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the power dissipation of the device. It's essential to ensure that the device does not exceed the maximum junction temperature (TJ) of 150°C.
Yes, the ISL43141IRZ is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive applications. However, it's essential to follow the recommended design guidelines and testing procedures to ensure the device meets the specific application requirements.
The power dissipation of the ISL43141IRZ can be calculated using the formula: Pd = (VIN x IIN) + (VOUT x IOUT). It's essential to consider the maximum power dissipation of the device (PD) and ensure that it does not exceed the recommended value. Additionally, the thermal resistance (θJA) should be considered to ensure the device does not exceed the maximum junction temperature (TJ).
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL43141IRZ Overview

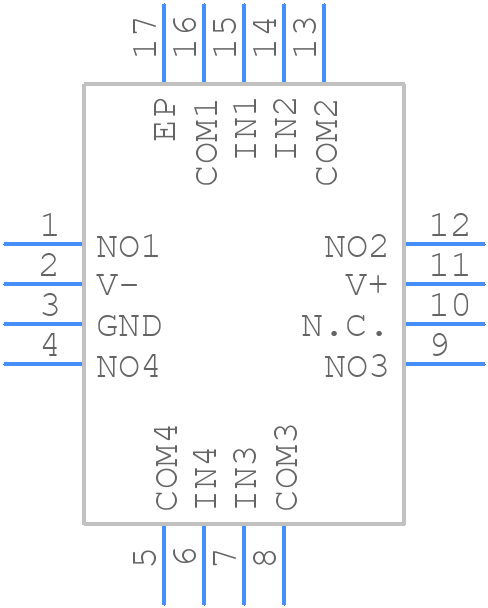

Use the download button to access the ISL43141IRZ schematic symbol, PCB footprint, and 3D model.
