Description:The Intersil ISL43L210 device is a low ON-resistance, low voltage, bidirectional, single pole/double throw (SPDT) analog switch designed to operate from a single +1. 1V to +4. 5V supply. Targeted applications include battery powered equipment that benefit from low on-resistance and fast switching speeds (tON = 7ns, tOFF = 3ns). The digital logic input is 1. 8V CMOS compatible when using a single +3V supply. Cell phones, for example, often face ASIC functionality limitations. The number of analog input or GP
A good PCB layout for the ISL43L210IHZ-T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it's recommended to place the device close to the power supply and use a low-ESR capacitor for decoupling.
To ensure proper power-on and power-off sequencing, it's recommended to follow the power-up and power-down sequences outlined in the datasheet. This typically involves powering up the VCC pin first, followed by the VLOGIC pin, and then the analog input signals. During power-down, the sequence should be reversed.
The recommended operating temperature range for the ISL43L210IHZ-T is -40°C to +125°C. However, it's essential to note that the device's performance may degrade at extreme temperatures, and the user should consult the datasheet for specific temperature-related specifications.
The ISL43L210IHZ-T has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during device handling and assembly. This includes using an ESD wrist strap or mat, storing the devices in anti-static packaging, and avoiding direct contact with the device pins.
The recommended soldering method for the ISL43L210IHZ-T is reflow soldering, with a peak temperature of 260°C. It's essential to follow the recommended soldering profile outlined in the datasheet to prevent damage to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL43L210IHZ-T Overview

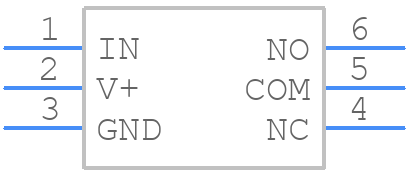

Use the download button to access the ISL43L210IHZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL43,
or try a keyword search, such as Multiplexers or Switches
