Description:The ISL5216 Quad Programmable Digital Downconverter (QPDC) is designed for high dynamic range applications such as cellular basestations where multiple channel processing is required in a small physical space. The QPDC combines into a single package a set of four channels which include: digital mixers, a quadrature carrier NCO, digital filters, a resampling filter, a cartesian to polar coordinate converter, and an automatic gain control (AGC) loop. The ISL5216 accepts four channels of 16-bit fixed or up to
Renesas provides a recommended PCB layout in the application note AN1443, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The ISL5216KI-1 requires a specific power-up sequence to ensure proper initialization. The datasheet recommends powering up the VCC pin first, followed by the VLOGIC pin, and then the EN pin. Additionally, the EN pin should be tied to a logic high signal to enable the device.
The ISL5216KI-1 is rated for operation from -40°C to +85°C, but it's essential to note that the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within the specified temperature range to ensure optimal performance and reliability.
Renesas provides a troubleshooting guide in the application note AN1444, which covers common issues and their solutions. Additionally, engineers can use tools such as oscilloscopes and logic analyzers to debug the device and identify the root cause of the issue.
Yes, Renesas recommends using EMI mitigation techniques such as shielding, filtering, and grounding to minimize electromagnetic interference. The application note AN1443 provides guidelines for EMI mitigation and PCB layout to reduce EMI.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL5216KI-1 Overview

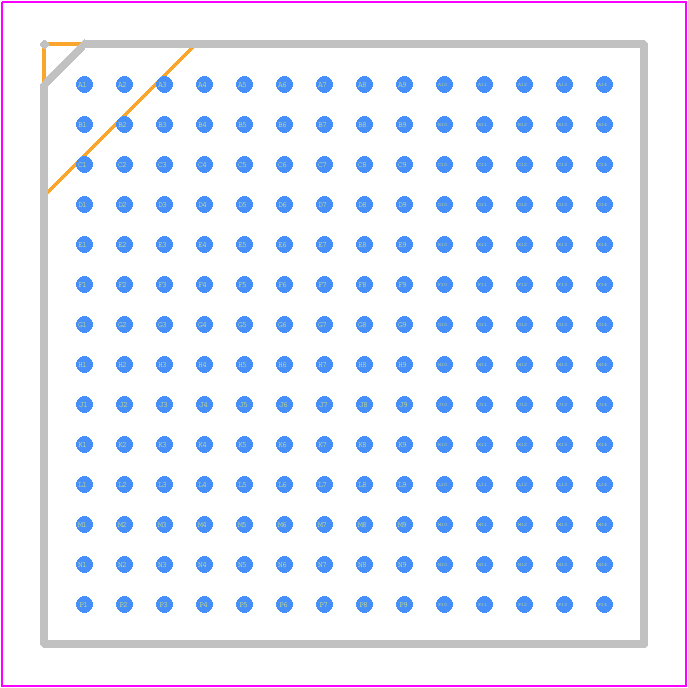

Use the download button to access the ISL5216KI-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL52,
or try a keyword search, such as Cellular Telephone Circuits
