Description:The ISL5216 Quad Programmable Digital Downconverter (QPDC) is designed for high dynamic range applications such as cellular basestations where multiple channel processing is required in a small physical space. The QPDC combines into a single package a set of four channels which include: digital mixers, a quadrature carrier NCO, digital filters, a resampling filter, a cartesian to polar coordinate converter, and an automatic gain control (AGC) loop. The ISL5216 accepts four channels of 16-bit fixed or up to
A good PCB layout for the ISL5216KI-1Z should prioritize signal integrity, minimize noise, and ensure proper thermal management. Renesas provides a recommended PCB layout in the application note AN1443, which includes guidelines for component placement, routing, and thermal pad connections.
The ISL5216KI-1Z has a thermal pad that must be connected to a thermal plane or heat sink to ensure proper heat dissipation. A thermal interface material (TIM) can be used to improve thermal conductivity. The application note AN1443 provides more information on thermal management and recommended thermal design guidelines.
The ISL5216KI-1Z has an operating temperature range of -40°C to +125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure that the device operates within the recommended temperature range for optimal performance and longevity.
Yes, the ISL5216KI-1Z is suitable for high-reliability and automotive applications. Renesas provides a range of automotive-grade and high-reliability products, including the ISL5216KI-1Z, which meets the requirements of the AEC-Q100 standard. However, it's essential to consult with Renesas or a qualified distributor to ensure that the device meets the specific requirements of your application.
Renesas provides a range of resources to help troubleshoot issues with the ISL5216KI-1Z, including application notes, datasheets, and technical support. Engineers can also use standard debugging techniques, such as signal probing, voltage measurement, and logic analysis, to identify and resolve issues. In addition, Renesas offers evaluation boards and development kits that can help simplify the debugging process.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL5216KI-1Z Overview

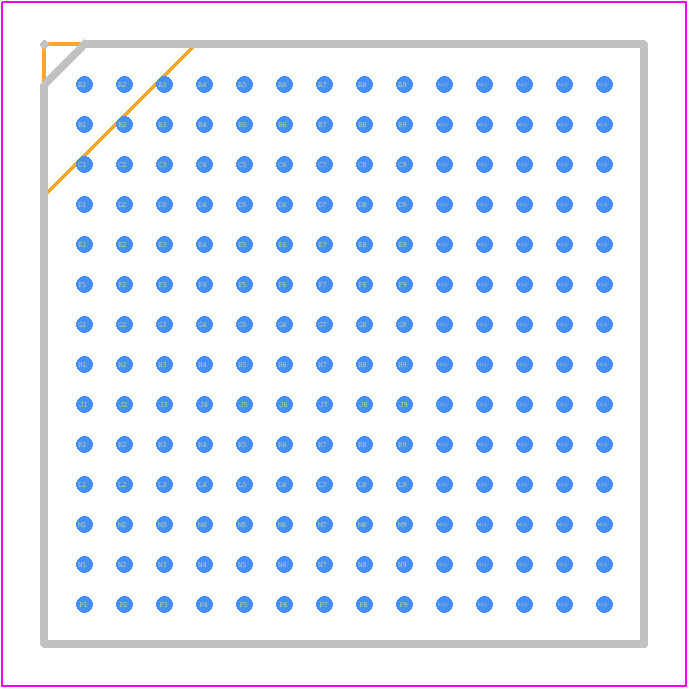

Use the download button to access the ISL5216KI-1Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL52,
or try a keyword search, such as Cellular Telephone Circuits
