Description:The ISL54060 device is a low ON-resistance, low voltage, bidirectional, dual single-pole/single-throw (SPST) analog switch. It is designed to operate from a single +1.8V to +6.5V supply and pass signals that swing down to 6.5V below the positive supply rail. Targeted applications include battery-powered equipment that benefit from low rON (0.56Ω), low power consumption (8nA) and fast switching speeds (tON = 55ns, tOFF = 18ns). The digital inputs are 1.8V logic-compatible up to a +3V supply. The ISL54060 is
Renesas provides a recommended PCB layout in the ISL54060IRTZ evaluation board user manual, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize EMI.
To ensure reliable operation over the full temperature range, follow the recommended operating conditions, including voltage and current ratings, and ensure proper thermal management, such as using a heat sink or thermal pad, and avoiding thermal hotspots.
Using a different voltage supply for the analog and digital sections can affect the device's performance, noise, and power consumption. It is recommended to use a single voltage supply for both sections, but if separate supplies are used, ensure they are well-regulated and decoupled to minimize noise and interference.
To troubleshoot issues with the ADC, check the input signal quality, ensure proper ADC configuration and calibration, and verify that the clock frequency and sampling rate are within the recommended specifications. Also, consult the datasheet and application notes for guidance on ADC troubleshooting.
For high-reliability or safety-critical applications, consider using redundant or duplicated circuits, implementing error detection and correction mechanisms, and following relevant industry standards and guidelines, such as IEC 61508 or DO-254. Additionally, consult with Renesas' technical support and review the device's reliability and quality data.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL54060IRTZ Overview

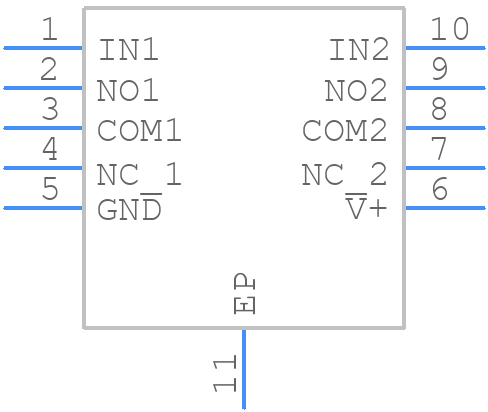

Use the download button to access the ISL54060IRTZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL54,
or try a keyword search, such as Multiplexers or Switches
