ISL54217IRTZ - Renesas Electronics

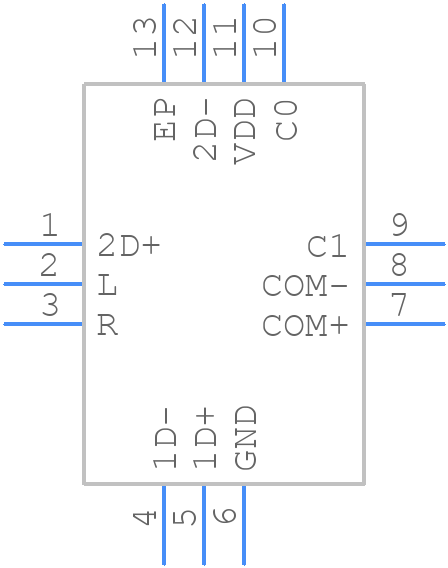

ISL54217IRTZ Details

• Manufacturer Part Number:

  ISL54217IRTZ

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  TQFN

• Package Description:

  TQFN-12

• Pin Count:

  12

• Manufacturer Package Code:

  L12.3X3A

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Analog IC - Other Type:

  DIFFERENTIAL MULTIPLEXER

• JESD-30 Code:

  S-PQCC-N12

• Length:

  3 mm

• Moisture Sensitivity Level:

  1

• Normal Position:

  NO

• Number of Channels:

  3

• Number of Functions:

  2

• Number of Terminals:

  12

• Off-state Isolation-Nom:

  96 dB

• On-state Resistance Match-Nom:

  0.08 Ω

• On-state Resistance-Max (Ron):

  20 Ω

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  SEPARATE OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.8 mm

• Supply Voltage-Max (Vsup):

  4.6 V

• Supply Voltage-Min (Vsup):

  2.7 V

• Supply Voltage-Nom (Vsup):

  3 V

• Surface Mount:

  YES

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Pure Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3 mm
