ISL54222AIUZ - Renesas Electronics

Description: The ISL54222A is a single supply dual 2:1 multiplexer that can operate from a single 1.8V to 3.3V supply. It contains two Single Pole/Double Throw (SPDT) switches configured as a DPDT. The part was designed for switching or routing of USB High-Speed signals and/or USB Full-Speed signals in portable battery-powered products. The 4.4Ω switches can swing rail-to-rail and were specifically designed to pass USB Full-Speed data signals that range from 0V to 3.3V and USB High-Speed data signals that range from 0V

Download ISL54222AIUZ Model

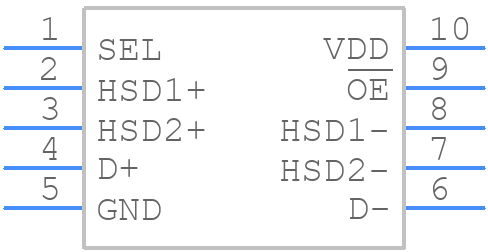

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL54222AIUZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M10.118
click to zoom
3D Models
ISL54222AIUZ - Renesas Electronics  - 3D model - Small Outline Packages - M10.118
click to zoom

ISL54222AIUZ Details

  • Manufacturer Part Number:

    ISL54222AIUZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MSOP

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    M10.118

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    SPDT

  • Input Voltage-Max:

    3.3 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Off-state Isolation-Nom:

    28 dB

  • On-state Resistance Match-Nom:

    0.072 Ω

  • On-state Resistance-Max (Ron):

    8 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Signal Current-Max:

    0.04 A

  • Supply Current-Max (Isup):

    0.05 mA

  • Supply Voltage-Max (Vsup):

    3.3 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    17 ns

  • Switch-on Time-Max:

    25 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ISL54222AIUZ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal performance involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the signal traces.
  • To ensure reliable operation over the entire operating temperature range, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal hotspots. Additionally, it's recommended to characterize the device's performance over the entire operating temperature range during the design phase.
  • Operating the device outside the recommended voltage supply range may affect its performance, reliability, and power consumption. Using a lower voltage supply may result in reduced switching frequency, increased power consumption, and decreased signal integrity. Using a higher voltage supply may result in increased power consumption, reduced reliability, and potential damage to the device.
  • To troubleshoot issues related to signal integrity and jitter, it's recommended to use high-speed measurement tools such as oscilloscopes and signal analyzers. Additionally, it's essential to follow proper PCB design and layout practices, use high-quality components, and ensure that the device is properly terminated and matched to the transmission line.
  • The ISL54222AIUZ has built-in ESD protection diodes on all pins, which can withstand up to 2kV of ESD voltage. Additionally, the device has latch-up prevention circuitry to prevent damage from overvoltage conditions. However, it's still recommended to follow proper ESD handling and storage procedures to prevent damage to the device.
