ISL54227IRTZ - Renesas Electronics

Description: The Intersil ISL54227 is a single supply, dual SPST (Single Pole/Single Throw) switch that is configured as a DPST. It can operate from a single 2. 7V to 5. 25V supply. The part was designed for switching or isolating a USB high-speed source or a USB high-speed and full-speed source in portable battery powered products. The 3. 5ΩSPST switches were specifically designed to pass USB full speed and USB high speed data signals. They have high bandwidth and low capacitance to pass USB high speed data signals wit

Download ISL54227IRTZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

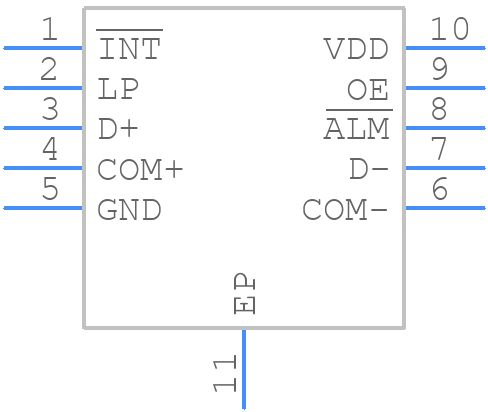

ISL54227IRTZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL54227IRTZ - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - L10.3x3A
click to zoom
3D Models
ISL54227IRTZ - Renesas Electronics - 3D model - Small Outline No-lead - L10.3x3A
click to zoom

ISL54227IRTZ Details

  • Manufacturer Part Number:

    ISL54227IRTZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TDFN

  • Package Description:

    TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    L10.3X3A

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-10-18

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    DPST

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Off-state Isolation-Nom:

    23 dB

  • On-state Resistance Match-Nom:

    0.2 Ω

  • On-state Resistance-Max (Ron):

    17 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.85 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ISL54227IRTZ Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the application note AN1965, which includes guidelines for component placement, routing, and thermal management to minimize signal integrity issues and ensure reliable operation.
  • Renesas provides application notes and design guides for specific use cases, such as USB (AN1964) and audio (AN1966). These resources provide detailed configuration and design recommendations for optimal performance in each application.
  • The ISL54227IRTZ is rated for operation from -40°C to +85°C, but it's essential to consider the specific application's thermal requirements and ensure proper thermal management to prevent overheating.
  • While the ISL54227IRTZ is a robust device, it's crucial to consider the specific environmental requirements of the application. Renesas recommends following the guidelines in the datasheet and application notes for mechanical stress and vibration testing to ensure reliable operation.
  • Renesas provides a troubleshooting guide in the application note AN1967, which covers common issues and debugging techniques. Additionally, engineers can consult the datasheet, application notes, and Renesas' technical support resources for assistance.
