ISL54233IRTZ-T - Renesas Electronics

Description: The Intersil ISL54233 is a single supply differential 3 to 1 multiplexer that operates from a single supply in the range of 2. 7V to 4. 6V. It was designed to multiplex between three different differential data sources, allowing the multiplexing of USB 2. 0 high speed data signals, UART data signals and digital video through a common headphone connector in Personal Media Players and other portable battery powered devices. The switch channels have low ON capacitance and high bandwidth (1. 6GHz) to pass USB h

Download ISL54233IRTZ-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

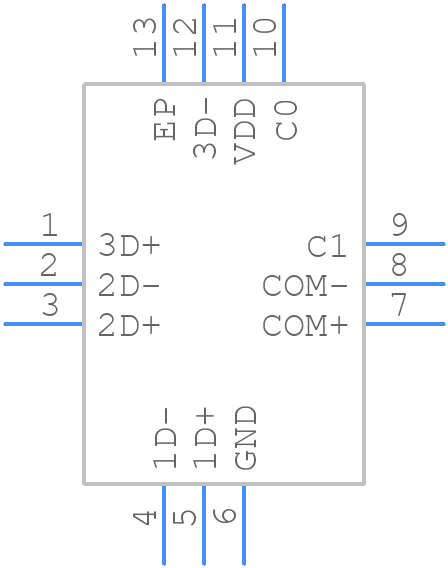

Symbol
ISL54233IRTZ-T - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL54233IRTZ-T - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L12.3x3A-2
click to zoom
3D Models
ISL54233IRTZ-T - Renesas Electronics - 3D model - Quad Flat No-Lead - L12.3x3A-2
click to zoom

ISL54233IRTZ-T Details

  • Manufacturer Part Number:

    ISL54233IRTZ-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TQFN

  • Package Description:

    TQFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    L12.3X3A

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2017-10-19

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • JESD-30 Code:

    S-PQCC-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Off-state Isolation-Nom:

    32 dB

  • On-state Resistance Match-Nom:

    0.07 Ω

  • On-state Resistance-Max (Ron):

    15 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    4.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ISL54233IRTZ-T Frequently Asked Questions (FAQs)

  • A good PCB layout for the ISL54233IRTZ-T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal sources. Additionally, using a shielded cable and minimizing the loop area of the signal traces can help reduce EMI.
  • The ISL54233IRTZ-T requires a single 1.8V to 3.6V power supply. It's recommended to power the device with a clean, low-noise power source. Power sequencing is not critical, but it's recommended to power the device after the input signals are stable.
  • The ISL54233IRTZ-T supports data rates up to 100 Mbps and cable lengths up to 3 meters. However, the actual data rate and cable length may vary depending on the specific application and environment.
  • The ISL54233IRTZ-T is a USB 2.0-compliant device, but it can also be used in USB 3.0 applications with some configuration. For USB 2.0, the device can be used as-is. For USB 3.0, the device requires an external resistor network to set the output impedance and a specific pin configuration.
  • The ISL54233IRTZ-T has a maximum junction temperature of 125°C. To ensure reliable operation, it's recommended to keep the device temperature below 85°C. This can be achieved by using a heat sink, reducing the power consumption, or improving the airflow around the device.
