ISL54406IRTZ - Renesas Electronics

Description: The ISL54406 is a dual single-pole/single-throw (SPST) switch that provides a very low distortion audio path for a stereo headphone or high impedance line-in load. This path can be interrupted to provide >110dB of off-isolation for signal muting purposes into 32Ω or high impedance loads such as consumer entertainment system line-inputs, MP3 docking systems for a powered speaker or automotive entertainment system in-line or cassette interfaces. Recovery from muting is instant even with very large DC blocking

Download ISL54406IRTZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

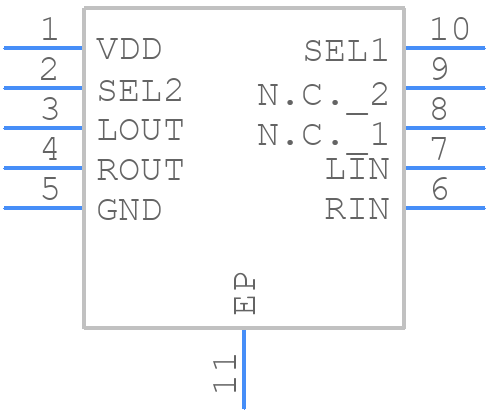

ISL54406IRTZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL54406IRTZ - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - L10.3x3A-11
click to zoom
3D Models
ISL54406IRTZ - Renesas Electronics - 3D model - Small Outline No-lead - L10.3x3A-11
click to zoom

ISL54406IRTZ Details

  • Manufacturer Part Number:

    ISL54406IRTZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TDFN

  • Package Description:

    HVSON,

  • Pin Count:

    10

  • Manufacturer Package Code:

    L10.3X3A

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-10-23

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO/NC

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Off-state Isolation-Nom:

    110 dB

  • On-state Resistance Match-Nom:

    0.09 Ω

  • On-state Resistance-Max (Ron):

    2.8 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ISL54406IRTZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ISL54406IRTZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to place the device close to the power source and use a low-ESR capacitor for the VCC pin.
  • To ensure proper power-up and initialization of the ISL54406IRTZ, make sure to follow the recommended power-up sequence, which involves applying VCC before applying the analog input signal. Also, ensure that the VCC pin is properly decoupled with a capacitor and that the device is operated within the recommended operating conditions.
  • The maximum allowable capacitance for the analog input pins of the ISL54406IRTZ is 10nF. Exceeding this value may affect the device's performance and stability.
  • To handle ESD protection for the ISL54406IRTZ, it's recommended to use a TVS (Transient Voltage Suppressor) diode or an ESD protection device at the input pins. Additionally, follow proper handling and storage procedures to prevent ESD damage.
  • The recommended operating temperature range for the ISL54406IRTZ is -40°C to +85°C. Operating the device outside this range may affect its performance and reliability.
