Description:The ISL55001 is a high speed, low power, low cost monolithic operational amplifier. The ISL55001 is unity-gain stable and features a 300V/µs slew rate and 220MHz bandwidth while requiring only 9mA of supply current. The power supply operating range of the ISL55001 is from ±15V down to ±2. 5V. For single-supply operation, the ISL55001 operates from 30V down to 5V. The ISL55001 also features an extremely wide output voltage swing of -12. 75V/+13. 4V with VS = ±15V and RL = 1kΩ. At a gain of +1, the ISL55001 h
Renesas provides a recommended PCB layout in the ISL55001 evaluation board user manual, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The selection of input and output capacitors depends on the specific requirements of your application, including the input voltage range, output voltage, and desired ripple and noise performance. Renesas provides guidance on capacitor selection in the datasheet and application notes, and recommends using low-ESR capacitors with a voltage rating that exceeds the maximum input voltage.
The ISL55001IBZ-T13 is rated for operation from -40°C to +125°C, but the maximum ambient temperature range for reliable operation may be lower depending on the specific application and thermal management. Renesas recommends following the thermal design guidelines in the datasheet and application notes to ensure reliable operation over the desired temperature range.
The ISL55001IBZ-T13 has built-in overcurrent protection and short-circuit protection, but additional external components may be required to implement these features. Renesas provides guidance on implementing overcurrent protection and short-circuit protection in the datasheet and application notes, and recommends using external resistors and capacitors to set the overcurrent threshold and response time.
The recommended startup sequence for the ISL55001IBZ-T13 involves applying the input voltage, followed by the enable signal, and then the output voltage. Renesas provides a detailed startup sequence in the datasheet and application notes, and recommends following this sequence to ensure proper startup and operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL55001IBZ-T13 Overview

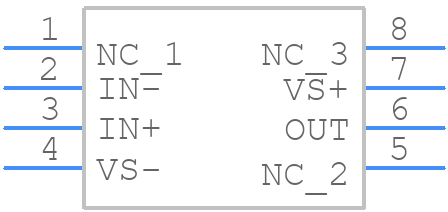

Use the download button to access the ISL55001IBZ-T13 schematic symbol, PCB footprint, and 3D model.
