ISL55004IBZ-T13 - Renesas Electronics

Description: The ISL55004 is a high speed, low power, low cost monolithic operational amplifier. The ISL55004 is unity-gain stable and features a 300V/µs slew rate and 200MHz bandwidth while requiring only 8. 5mA of supply current per amplifier. The power supply operating range of the ISL55004 is from ±15V down to ±2. 5V. For single-supply operation, the ISL55004 operates from 30V down to 5V. The ISL55004 also features an extremely wide output voltage swing of -12. 75V/+13. 4V with VS = ±15V and RL = 1kΩ. At a gain of +

Download ISL55004IBZ-T13 Model

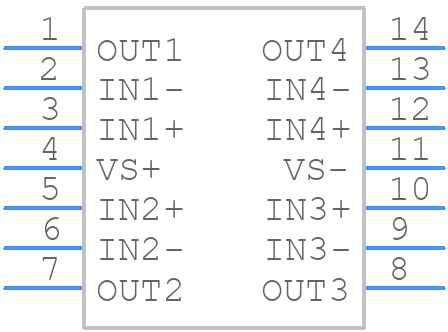

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL55004IBZ-T13 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - MDP0027
click to zoom
3D Models
ISL55004IBZ-T13 - Renesas Electronics  - 3D model - Small Outline Packages - MDP0027
click to zoom

ISL55004IBZ-T13 Details

  • Manufacturer Part Number:

    ISL55004IBZ-T13

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICN

  • Package Description:

    SOICN-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    M14.15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2017-10-24

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    3.5 µA

  • Bandwidth (3dB)-Nom:

    17000 MHz

  • Bias Current-Max (IIB) @25C:

    0.6 µA

  • Common-mode Reject Ratio-Min:

    75 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    2 µA

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.6614 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -16.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.7272 mm

  • Slew Rate-Min:

    260 V/us

  • Slew Rate-Nom:

    300 V/us

  • Supply Current-Max:

    9.25 mA

  • Supply Voltage Limit-Max:

    16.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    70000

  • Voltage Gain-Min:

    5623

  • Wideband:

    YES

  • Width:

    3.9116 mm

ISL55004IBZ-T13 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal performance involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the device operates within the specified temperature range, it's essential to provide adequate heat sinking and thermal management. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the device.
  • The recommended input capacitor value and type for the ISL55004IBZ-T13 is a 10uF to 22uF X7R or X5R ceramic capacitor. This value and type provide a good balance between filtering and stability.
  • To troubleshoot issues with the device not regulating the output voltage, check the input voltage, output load, and feedback resistors. Ensure that the input voltage is within the specified range, the output load is within the specified current range, and the feedback resistors are correctly connected and of the correct value.
  • The recommended output capacitor value and type for the ISL55004IBZ-T13 is a 10uF to 22uF X7R or X5R ceramic capacitor. This value and type provide a good balance between filtering and stability.
