ISL55100AIRZ-T7A - Renesas Electronics

Description: The ISL55100A is a quad pin driver and window comparator fabricated in a wide voltage CMOS process. It is designed specifically for Test During Burn-In (TDBI) applications, where cost, functional density and power are all at a premium. This IC incorporates four channels of programmable drivers and window comparators into a small 72 Ld QFN package. Each channel has independent driver levels, data and high impedance control. Each receiver has dual comparators, which provide high and low threshold levels. The

Download ISL55100AIRZ-T7A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

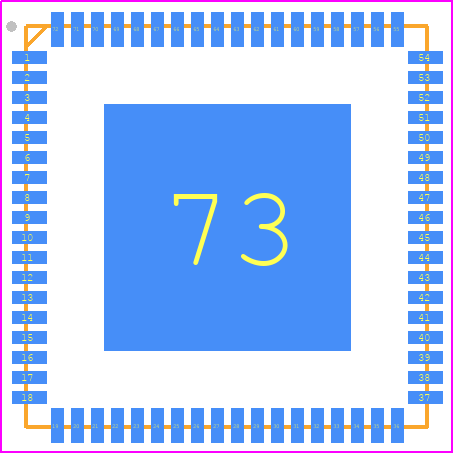

ISL55100AIRZ-T7A - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L72.10x10
click to zoom
3D Models
ISL55100AIRZ-T7A - Renesas Electronics  - 3D model - Quad Flat No-Lead - L72.10x10
click to zoom

ISL55100AIRZ-T7A Details

  • Manufacturer Part Number:

    ISL55100AIRZ-T7A

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Pin Count:

    72

  • Manufacturer Package Code:

    L72.10X10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

ISL55100AIRZ-T7A Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use short, wide traces for power and ground connections.
  • Monitor the device's junction temperature (TJ) and ensure it stays within the recommended range (-40°C to 125°C). Also, ensure the input voltage (VIN) is within the recommended range (2.7V to 5.5V) and the output voltage (VOUT) is within the specified range (0.8V to VIN).
  • Critical components include the input capacitor (CIN), output capacitor (COUT), and inductor (L). Choose components with low ESR and high ripple current ratings. Ensure the inductor is designed for high-frequency operation and has a low DC resistance.
  • Optimize the device's efficiency by selecting the right inductor and capacitor values, minimizing the PCB's parasitic resistance and inductance, and using a low-loss diode. Also, consider using a synchronous rectifier to reduce power losses.
  • Ensure good airflow around the device, use a heat sink if necessary, and consider using a thermal interface material (TIM) to improve heat transfer. Monitor the device's junction temperature and ensure it stays within the recommended range.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL55100AIRZ-T7A Overview

Use the download button to access the ISL55100AIRZ-T7A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL55, or try a keyword search, such as Peripheral Drivers
