ISL55100BIRZ-T - Renesas Electronics

Description: The ISL55100B is a quad pin driver and window comparator fabricated in a wide voltage CMOS process. It is designed specifically for Test During Burn-In (TDBI) applications, where cost, functional density and power are all at a premium. This IC incorporates four channels of programmable drivers and window comparators into a small 72 Ld QFN package. Each channel has independent driver levels, data and high impedance control. Each receiver has dual comparators, which provide high and low threshold levels. The

Download ISL55100BIRZ-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

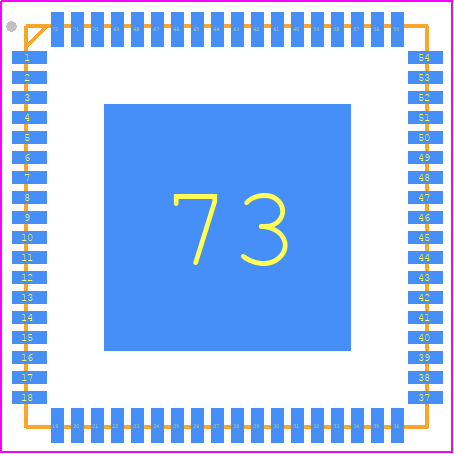

ISL55100BIRZ-T - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L72.10x10
click to zoom
3D Models
ISL55100BIRZ-T - Renesas Electronics  - 3D model - Quad Flat No-Lead - L72.10x10
click to zoom

ISL55100BIRZ-T Details

  • Manufacturer Part Number:

    ISL55100BIRZ-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    72

  • Manufacturer Package Code:

    L72.10X10

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Date Of Intro:

    2017-10-26

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

ISL55100BIRZ-T Frequently Asked Questions (FAQs)

  • A good PCB layout for the ISL55100BIRZ-T involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a value between 1uF to 10uF, while the output capacitor should be a low-ESR ceramic or tantalum capacitor with a value between 1uF to 22uF. The capacitor values and types should be chosen based on the specific application requirements and operating conditions.
  • The ISL55100BIRZ-T is rated for operation up to 125°C ambient temperature, but the maximum junction temperature should not exceed 150°C. The device should be derated for high-temperature operation to ensure reliable performance.
  • To ensure EMC, the ISL55100BIRZ-T should be placed in a shielded area, and the input and output traces should be routed away from noise sources. Additionally, a common-mode choke or ferrite bead can be used to filter out high-frequency noise.
  • The recommended soldering temperature for the ISL55100BIRZ-T is between 240°C to 260°C, and the soldering time should not exceed 3 seconds. A soldering iron with a temperature-controlled tip is recommended to prevent overheating.
