Description:The ISL55210 is a very wide band, fully differential amplifier (FDA) intended for high dynamic range ADC input interface applications. This voltage feedback FDA design includes an independent output common mode voltage control. At the lowest quiescent power (115mW), the ISL55210 offers a 4.0GHz gain bandwidth product with a very low input noise of 0.85nV/√(Hz). In a balanced differential I/O configuration, with 2VP-P output into a 200Ω load configured for a gain of 15dB, the IM3 terms are <-100dBc through 1
The recommended PCB layout for optimal performance can be found in the ISL55210 Evaluation Board User Manual (document number: ISL55210-EV1Z) available on the Renesas website. It provides guidelines for component placement, routing, and thermal management.
To ensure the device operates within the specified temperature range, it is essential to provide adequate heat sinking and thermal management. The device's thermal pad should be connected to a copper plane on the PCB, and the PCB should be designed to dissipate heat efficiently. Additionally, the device should be operated within the recommended ambient temperature range of -40°C to +125°C.
The recommended input capacitor value and type for the ISL55210 can vary depending on the specific application and operating conditions. However, as a general guideline, a 10uF to 22uF X5R or X7R ceramic capacitor is recommended. The capacitor should be placed as close to the VIN pin as possible and should have a low equivalent series resistance (ESR) to minimize voltage ripple and ensure stable operation.
To troubleshoot issues with the ISL55210, it is essential to follow a systematic approach. First, verify that the device is properly powered and that the input voltage is within the recommended range. Next, check the output voltage and current to ensure they are within the specified limits. If the issue persists, check the PCB layout and component placement to ensure they meet the recommended guidelines. Finally, consult the ISL55210 datasheet and application notes for troubleshooting guides and FAQs.
Yes, the ISL55210 is suitable for use in high-reliability and automotive applications. It is AEC-Q100 qualified and meets the requirements for automotive-grade devices. However, it is essential to follow the recommended design and layout guidelines, and to ensure that the device is operated within the specified temperature range and electrical parameters.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL55210IRTZ-T7 Overview

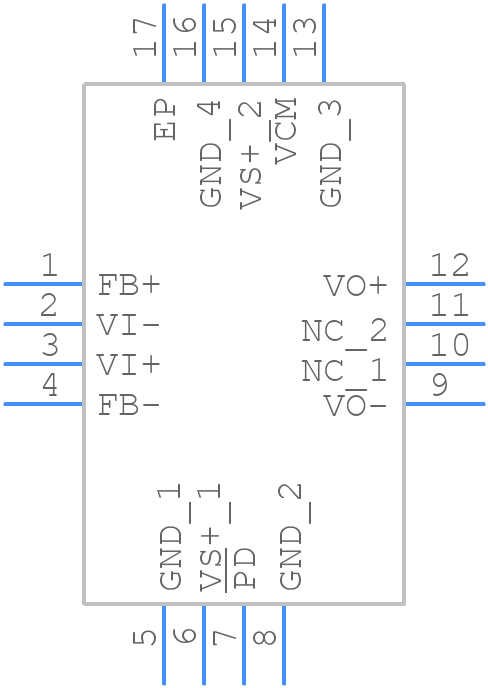

Use the download button to access the ISL55210IRTZ-T7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL55,
or try a keyword search, such as Operational Amplifiers
