ISL5585ECMZ - Renesas Electronics

ISL5585ECMZ Details

• Manufacturer Part Number:

  ISL5585ECMZ

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

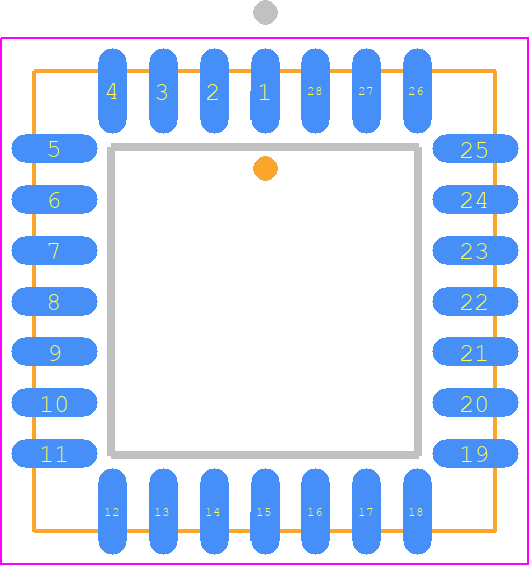

• Part Package Code:

  PLCC

• Pin Count:

  28

• Manufacturer Package Code:

  N28.45

• HTS Code:

  8542.39.00.01

• Date Of Intro:

  2017-09-26

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Battery Feed:

  CONSTANT CURRENT/RESISTIVE

• Battery Supply:

  -75 V

• Hybrid:

  2-4 CONVERSION

• JESD-30 Code:

  S-PQCC-J28

• JESD-609 Code:

  e3

• Length:

  11.505 mm

• Moisture Sensitivity Level:

  3

• Noise-Max:

  13 dBrnC

• Number of Functions:

  1

• Number of Terminals:

  28

• Operating Temperature-Max:

  75 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC28,.45SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Peak Reflow Temperature (Cel):

  245

• Seated Height-Max:

  4.57 mm

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Telecom IC Type:

  SLIC

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  11.505 mm
