ISL5861IAZ - Renesas Electronics

Description: The ISL5861 is a 12-bit, 130/210+MSPS (Mega Samples Per Second), CMOS, high-speed, low power, D/A (digital-to-analog) converter, designed specifically for use in high-performance communication systems such as base transceiver stations utilizing 2.5G or 3G cellular protocols. This device complements the ISL5x61 family of high-speed converters, which include 10, 12 and 14-bit devices.

Download ISL5861IAZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

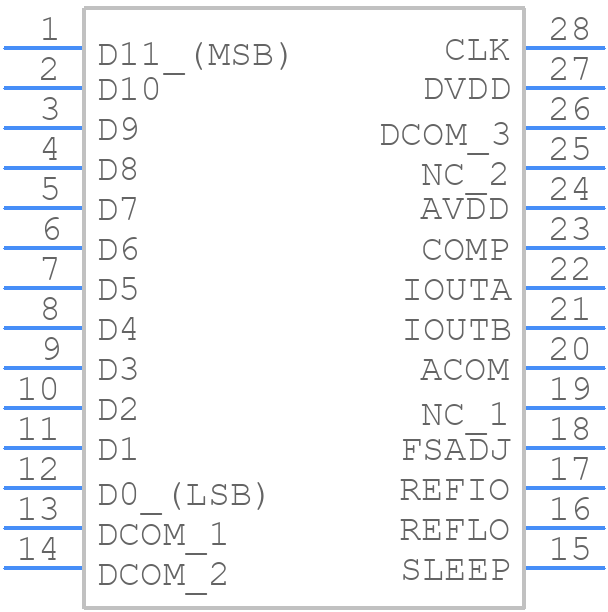

ISL5861IAZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL5861IAZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M28.3
click to zoom
3D Models
ISL5861IAZ - Renesas Electronics - 3D model - Small Outline Packages - M28.3
click to zoom

ISL5861IAZ Details

  • Manufacturer Part Number:

    ISL5861IAZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Pin Count:

    28

  • Manufacturer Package Code:

    M28.173

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2017-10-31

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    1.25 V

  • Analog Output Voltage-Min:

    -1 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Linearity Error-Max (EL):

    0.03051%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ISL5861IAZ Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the ISL5861IAZ evaluation board user manual, which can be found on the Renesas website. The layout includes guidelines for signal routing, power supply decoupling, and thermal management.
  • To minimize power consumption, ensure that the input voltage is as close to the minimum as possible, and use the lowest possible clock frequency. Additionally, consider using the device's power-down mode when not in use. Refer to the datasheet for specific power-down mode details.
  • The maximum allowable voltage on the digital input pins is the supply voltage (VCC) + 0.3V. Exceeding this voltage may cause damage to the device.
  • Proper thermal management is crucial for the device's reliability. Ensure good airflow around the device, and consider using a heat sink if the device is expected to operate at high ambient temperatures or with high power dissipation. Refer to the datasheet for thermal resistance and junction temperature specifications.
  • Renesas recommends using ESD protection devices, such as TVS diodes, on the input and output pins to protect against electrostatic discharge. Refer to the datasheet for specific ESD protection recommendations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL5861IAZ Overview

Use the download button to access the ISL5861IAZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL58, or try a keyword search, such as Digital to Analog Converters
