Description:The ISL58781 is a highly integrated laser diode driver designed to support multi-standard writable optical drives in CD, DVD, and Blu-Ray at various speeds. It is a ‘hybrid’ part having an interface compatible with a conventional LDD, but an internal architecture similar to a write strategy LDD. This combination adds versatility to the conventional interface. The rise and fall times and overshoot of the blue output are adjustable to compensate for high and low resistance lasers. There are two banks of write
Renesas provides a recommended PCB layout guide in their application note AN1995, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize EMI.
The selection of the inductor depends on the specific application requirements, such as the input voltage, output voltage, and current rating. Renesas provides a list of recommended inductors in their datasheet, and engineers can also use online inductor selection tools or consult with inductor manufacturers to find the suitable component.
The maximum junction temperature (Tj) for the ISL58781CRZ-T13 is 150°C, as specified in the datasheet. Engineers should ensure that the device operates within the recommended temperature range to prevent overheating and ensure reliability.
The ISL58781CRZ-T13 has built-in OCP and SCP features. Engineers can implement these features by connecting the OCP and SCP pins to the input voltage and output voltage rails, respectively, and setting the threshold values according to the application requirements.
Renesas recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF for the input capacitor, depending on the input voltage and current requirements. The capacitor should be placed close to the device's input pins to minimize noise and ensure stable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL58781CRZ-T13 Overview

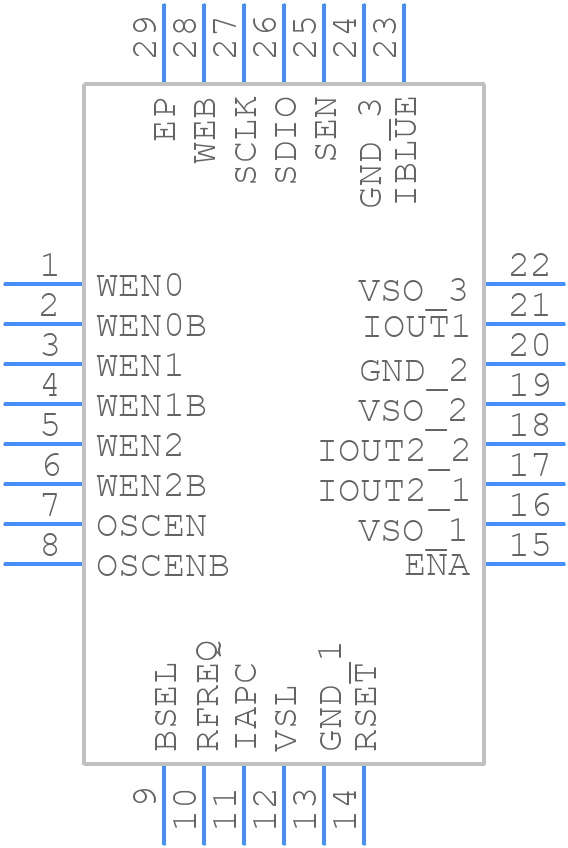

Use the download button to access the ISL58781CRZ-T13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL58,
or try a keyword search, such as Other Interface ICs
