Description:The ISL5957 is a 14-bit, 260+MSPS (Mega Samples Per Second), CMOS, high speed, low power, D/A (digital to analog) converter, designed specifically for use in high performance communication systems such as base transceiver stations utilizing 2. 5G or 3G cellular protocols. This device complements the ISL5x57 family of high speed converters, which include 10, 12, and 14-bit devices.
A good PCB layout for the ISL5957IAZ should prioritize thermal management, minimize noise coupling, and ensure proper power supply decoupling. Place the device near the power supply, use a solid ground plane, and keep analog and digital signals separate. Refer to the application note 'PCB Layout Guidelines for ISL5957IAZ' for more details.
The output filter design depends on the specific application requirements, such as output voltage, current, and ripple. Use the ISL5957IAZ's output filter design tool or consult the application note 'Output Filter Design for ISL5957IAZ' to determine the optimal filter component values. Consider factors like output impedance, phase margin, and component tolerances.
The ISL5957IAZ has a high power density, so thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and follow the recommended PCB layout guidelines. The device's thermal pad should be connected to a solid ground plane or a thermal relief pattern. Monitor the junction temperature (TJ) and ensure it stays within the recommended operating range.
To troubleshoot oscillations or instability, check the PCB layout, power supply decoupling, and output filter design. Ensure that the input and output capacitors are properly selected and placed. Verify that the device is operated within its recommended operating conditions, and that the feedback loop is properly compensated. Consult the application note 'Troubleshooting Guide for ISL5957IAZ' for more guidance.
The ISL5957IAZ is a high-frequency device, so EMI and EMC considerations are important. Use proper shielding, grounding, and filtering techniques to minimize electromagnetic interference. Follow the recommended PCB layout guidelines and ensure that the device is operated within its recommended operating conditions. Consult the application note 'EMI and EMC Considerations for ISL5957IAZ' for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL5957IAZ Overview

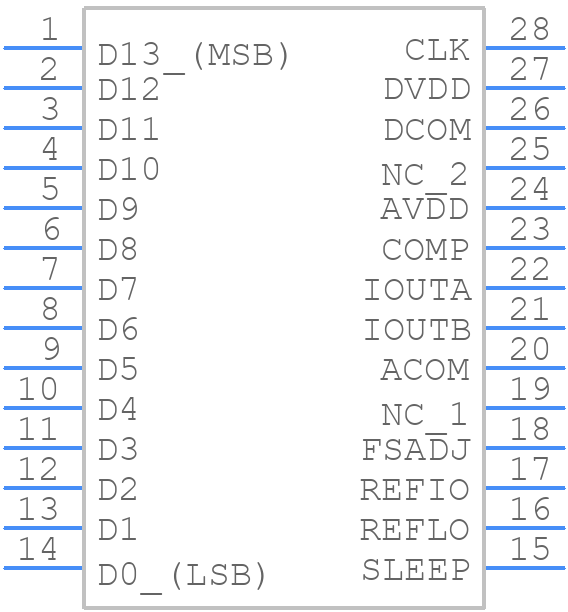

Use the download button to access the ISL5957IAZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL59,
or try a keyword search, such as Digital to Analog Converters
