ISL5961IAZ - Renesas Electronics

Description: The ISL5961 is a 14-bit, 130/210+MSPS (Mega Samples Per Second), CMOS, high-speed, low power, D/A (digital-to-analog) converter, designed specifically for use in high-performance communication systems such as base transceiver stations utilizing 2.5G or 3G cellular protocols. This device complements the ISL5x61 family of high-speed converters, which include 10, 12 and 14-bit devices.

Download ISL5961IAZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

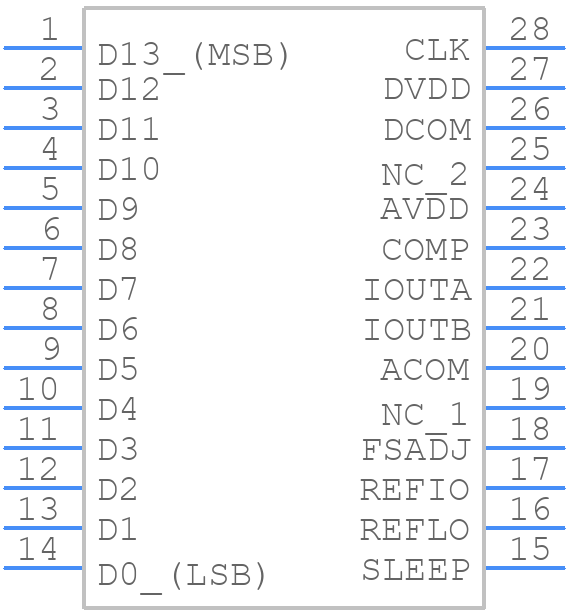

Symbol
ISL5961IAZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL5961IAZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 28 Ld TSSOP
click to zoom
3D Models
ISL5961IAZ - Renesas Electronics - 3D model - Small Outline Packages - 28 Ld TSSOP
click to zoom

ISL5961IAZ Details

  • Manufacturer Part Number:

    ISL5961IAZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Pin Count:

    28

  • Manufacturer Package Code:

    M28.173

  • HTS Code:

    8542.39.00.40

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    1.25 V

  • Analog Output Voltage-Min:

    -1 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Linearity Error-Max (EL):

    0.0305%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ISL5961IAZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ISL5961IAZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to place the device close to the power supply and use a low-ESR capacitor for decoupling.
  • To ensure stability, make sure to follow the recommended component values and layout guidelines in the datasheet. Additionally, ensure that the input and output capacitors are properly selected and placed, and that the device is operated within its recommended operating conditions.
  • The maximum allowed input voltage for the ISL5961IAZ is 6V, but it's recommended to operate the device within the recommended input voltage range of 2.7V to 5.5V for optimal performance and reliability.
  • The ISL5961IAZ is rated for operation up to 125°C, but it's recommended to derate the device's performance and reliability at high temperatures. Consult the datasheet for specific temperature-related derating information.
  • To troubleshoot issues with the ISL5961IAZ, start by verifying the device's input voltage, output load, and PCB layout. Check for any signs of overheating, and ensure that the device is operated within its recommended operating conditions. Use an oscilloscope to measure the output voltage and noise, and consult the datasheet for troubleshooting guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL5961IAZ Overview

Use the download button to access the ISL5961IAZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL59, or try a keyword search, such as Digital to Analog Converters
