Description:The ISL6146 represents a family of OR-ing MOSFET controllers capable of OR-ing voltages from 1V to 18V. Together with suitably sized N-channel power MOSFETs, the ISL6146 increases power distribution efficiency when replacing a power OR-ing diode in high current applications. It provides gate drive voltage for the MOSFET(s) with a fully integrated charge pump. The ISL6146 allows users to adjust with external resistor(s) the VOUT - VIN trip point, which adjusts the control sensitivity to system power supply n
A good PCB layout for the ISL6146AFRZ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input and output with additional capacitors if the device is far from the power source.
The maximum ambient temperature range for the ISL6146AFRZ is -40°C to +125°C. However, the device's performance may degrade at higher temperatures, so it's recommended to operate it within a temperature range of -20°C to +85°C for optimal performance.
Yes, the ISL6146AFRZ is suitable for high-reliability applications. It's built with a robust design and has undergone rigorous testing to ensure its reliability. However, it's still important to follow proper design and manufacturing guidelines to ensure the device operates within its specifications.
To troubleshoot issues with the ISL6146AFRZ, start by checking the input and output voltages, as well as the device's operating frequency. Verify that the component values and PCB layout meet the recommended guidelines. If the issue persists, check for signs of overheating, and ensure that the device is not exposed to excessive voltage or current.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6146AFRZ Overview

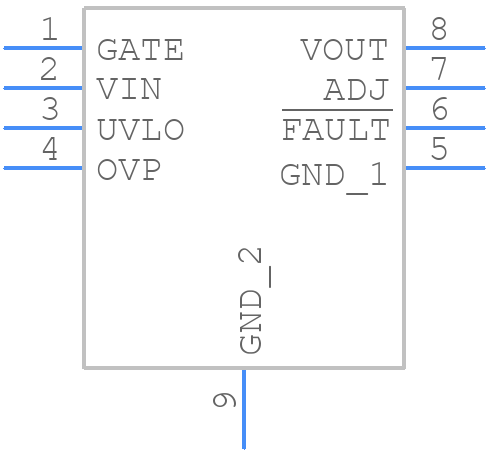

Use the download button to access the ISL6146AFRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL61,
or try a keyword search, such as MOSFET Drivers
