Description:The ISL6146 represents a family of OR-ing MOSFET controllers capable of OR-ing voltages from 1V to 18V. Together with suitably sized N-channel power MOSFETs, the ISL6146 increases power distribution efficiency when replacing a power OR-ing diode in high current applications. It provides gate drive voltage for the MOSFET(s) with a fully integrated charge pump. The ISL6146 allows users to adjust with external resistor(s) the VOUT - VIN trip point, which adjusts the control sensitivity to system power supply n
The recommended PCB layout for optimal performance involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input and output voltages to reduce noise and improve stability.
To ensure the device operates within the specified temperature range, it's essential to provide adequate heat sinking and thermal management. This can be achieved by using a heat sink with a thermal resistance of less than 10°C/W, and ensuring good airflow around the device. Additionally, the device should be operated within the specified power dissipation limits to prevent overheating.
Operating the device outside the recommended input voltage range can lead to reduced performance, increased power consumption, and potentially even damage to the device. If the input voltage is too low, the device may not be able to regulate the output voltage properly, while an input voltage that is too high can cause excessive power dissipation and overheating.
To troubleshoot issues with the device, it's essential to follow a systematic approach. First, verify that the input voltage and current are within the specified ranges, and that the output voltage is set correctly. Next, check the PCB layout and ensure that it meets the recommended guidelines. If the issue persists, try replacing the input and output capacitors, and check for any signs of overheating or physical damage to the device.
Yes, when using the ISL6146AFUZ-TK, it's essential to take into account EMI/EMC considerations to ensure compliance with regulatory requirements. This includes using a metal shield around the device, keeping the input and output traces short and away from sensitive circuits, and using EMI filters or common-mode chokes to reduce radiated emissions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6146AFUZ-TK Overview

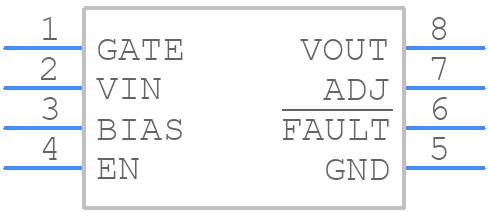

Use the download button to access the ISL6146AFUZ-TK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL61,
or try a keyword search, such as MOSFET Drivers
