Description:The ISL6146 represents a family of OR-ing MOSFET controllers capable of OR-ing voltages from 1V to 18V. Together with suitably sized N-channel power MOSFETs, the ISL6146 increases power distribution efficiency when replacing a power OR-ing diode in high current applications. It provides gate drive voltage for the MOSFET(s) with a fully integrated charge pump. The ISL6146 allows users to adjust with external resistor(s) the VOUT - VIN trip point, which adjusts the control sensitivity to system power supply n
A good PCB layout is crucial for the ISL6146DFRZ. Renesas recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common mode choke and a shielded inductor to reduce EMI.
The ISL6146DFRZ is rated for operation from -40°C to 125°C. To ensure operation within this range, ensure good thermal design, including a heat sink if necessary, and avoid overheating due to high ambient temperatures or high power dissipation.
Exceeding the maximum ratings can lead to device damage or failure. This includes exceeding the maximum input voltage, output current, or operating temperature. It's essential to ensure that the device operates within the specified ratings to ensure reliability and longevity.
Renesas provides a troubleshooting guide in the datasheet, which includes steps to identify and resolve common issues such as output voltage errors, oscillations, and overcurrent protection. Additionally, Renesas offers application notes and technical support to help with troubleshooting.
Yes, the ISL6146DFRZ is a high-frequency switching regulator, and EMI can be a concern. Renesas recommends using a shielded inductor, a common mode choke, and to follow good PCB layout practices to minimize EMI. Additionally, the device has built-in EMI reduction features such as spread spectrum frequency modulation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6146DFRZ Overview

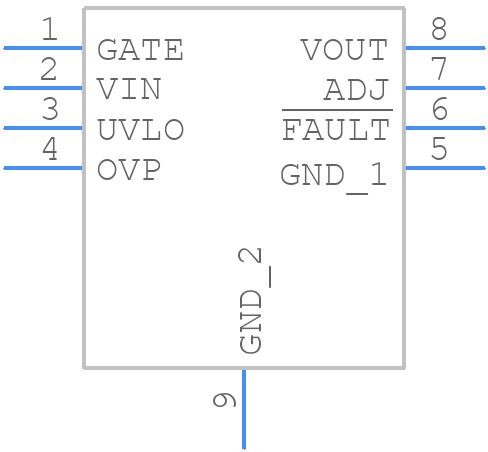

Use the download button to access the ISL6146DFRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL61,
or try a keyword search, such as MOSFET Drivers
