Description:Support is limited to customers who have already adopted these products.The ISL6207 is a high frequency, dual MOSFET driver, optimized to drive two N-Channel power MOSFETs in a synchronous-rectified buck converter topology in mobile computing applications. This driver, combined with an Intersil Multi-Phase Buck PWM controller, such as ISL6223, ISL6215, and ISL6216, forms a complete single-stage core-voltage regulator solution for advanced mobile microprocessors. The ISL6207 features 4A typical sink current
A good PCB layout for the ISL6207CBZ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input and output voltages to reduce noise and improve performance.
To ensure the ISL6207CBZ operates within its safe operating area (SOA), you should monitor the device's junction temperature, input voltage, output current, and power dissipation. Make sure to stay within the recommended operating conditions specified in the datasheet, and consider using thermal management techniques such as heat sinks or thermal interfaces if necessary.
The recommended input capacitor type for the ISL6207CBZ is a low-ESR ceramic capacitor with a value of 10uF to 22uF. This helps to filter out high-frequency noise and ensure stable operation. However, the exact value may vary depending on the specific application and input voltage ripple requirements.
To troubleshoot issues with the ISL6207CBZ, start by checking the input voltage, output voltage, and output current to ensure they are within the recommended operating conditions. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to check for noise or oscillations on the input and output lines. If the issue persists, consider consulting the datasheet or contacting Renesas support for further assistance.
The ISL6207CBZ is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. Be sure to derate the device's power dissipation and output current according to the datasheet's thermal derating curves. Additionally, consider using thermal management techniques such as heat sinks or thermal interfaces to keep the device within its recommended operating temperature range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6207CBZ Overview

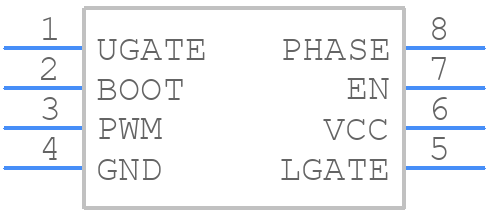

Use the download button to access the ISL6207CBZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL62,
or try a keyword search, such as MOSFET Drivers
