Description:The ISL6208 and ISL6208B are high frequency, dual MOSFET drivers, optimized to drive two N-Channel power MOSFETs in a synchronous-rectified buck converter topology. They are especially suited for mobile computing applications that require high efficiency and excellent thermal performance. These drivers, combined with an Intersil multiphase Buck PWM controller, form a complete single-stage core-voltage regulator solution for advanced mobile microprocessors. ISL6208 and ISL6208B have the same function but dif
A good PCB layout for the ISL6208CBZ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input and output voltages to reduce noise and improve performance.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input and output pins with ceramic capacitors to reduce noise and improve stability.
The ISL6208CBZ is rated for operation from -40°C to +85°C ambient temperature range. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate within the specified temperature range for optimal performance.
Yes, the ISL6208CBZ is suitable for high-reliability and automotive applications. It's built with high-quality materials and has undergone rigorous testing to ensure its reliability and performance. However, it's recommended to consult with Renesas Electronics Corporation for specific requirements and certifications for these applications.
To troubleshoot issues with the ISL6208CBZ, start by checking the input and output voltage levels, as well as the current drawn from the input. Verify that the component values and PCB layout meet the recommended specifications. Use an oscilloscope to check for noise and oscillations on the output voltage. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines or contact Renesas Electronics Corporation for support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6208CBZ Overview

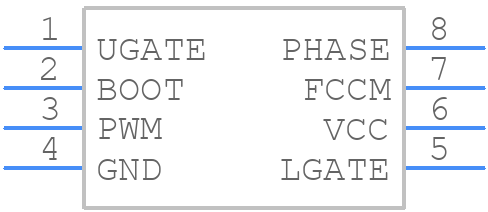

Use the download button to access the ISL6208CBZ schematic symbol, PCB footprint, and 3D model.
