ISL6208CRZ - Renesas Electronics

Description: The ISL6208 and ISL6208B are high frequency, dual MOSFET drivers, optimized to drive two N-Channel power MOSFETs in a synchronous-rectified buck converter topology. They are especially suited for mobile computing applications that require high efficiency and excellent thermal performance. These drivers, combined with an Intersil multiphase Buck PWM controller, form a complete single-stage core-voltage regulator solution for advanced mobile microprocessors. ISL6208 and ISL6208B have the same function but dif

Download ISL6208CRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

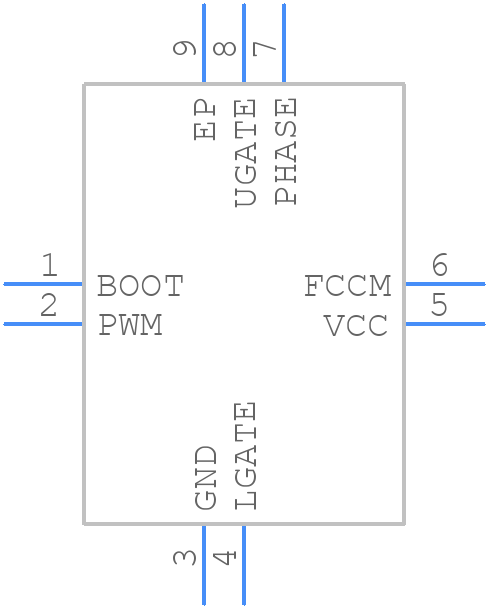

ISL6208CRZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL6208CRZ - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L8.3x3 Rev 2, 3/07
click to zoom
3D Models
ISL6208CRZ - Renesas Electronics - 3D model - Quad Flat No-Lead - L8.3x3 Rev 2, 3/07
click to zoom

ISL6208CRZ Details

  • Manufacturer Part Number:

    ISL6208CRZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    QFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    L8.3X3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PQCC-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -10 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC8,.12SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.03 µs

  • Turn-on Time:

    0.03 µs

  • Width:

    3 mm

ISL6208CRZ Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the ISL6208CRZ evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • Renesas provides a configuration guide and design tools, such as the PowerNavigator software, to help engineers configure the ISL6208CRZ for their specific application. These tools can help with setting voltage rails, configuring power sequencing, and optimizing performance.
  • Renesas recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output rails. The specific capacitor values and types may vary depending on the application, but Renesas provides guidance in the datasheet and application notes.
  • Renesas provides a troubleshooting guide in the datasheet and application notes, which includes steps to identify and resolve common issues. Engineers can also use the PowerNavigator software to monitor and debug the ISL6208CRZ in real-time.
  • The ISL6208CRZ is a general-purpose power management IC that can be used with a wide range of processors and FPGAs. However, Renesas provides specific compatibility information and design guidelines for popular processors and FPGAs in their application notes and design guides.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL6208CRZ Overview

Use the download button to access the ISL6208CRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL62, or try a keyword search, such as MOSFET Drivers
