Description:The ISL6218 Single-Phase Buck PWM control IC, with integrated half bridge gate driver, provides a precision voltage regulation system for advanced Pentium-M microprocessors in notebook computers. This control IC also features both input voltage feed-forward and average current mode control for excellent dynamic response, Loss-less current sensing using MOSFET rDS(ON), and user selectable switching frequencies from 250kHz to 500kHz per phase. The ISL6218 includes a 6-bit digital-to-analog converter (DAC) tha
The recommended PCB layout for optimal thermal performance involves placing the device on a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and using thermal vias to connect the exposed pad to the ground plane. Additionally, keeping the thermal path short and using a thermal pad on the top layer can help to improve thermal performance.
To ensure reliable start-up and shutdown of the device, it is recommended to follow the power-up and power-down sequencing guidelines outlined in the datasheet. This includes ensuring that the input voltage is stable and within the recommended range before enabling the device, and disabling the device before removing power.
Operating the device outside of the recommended operating conditions can lead to reduced performance, decreased reliability, and potentially even damage to the device. It is recommended to operate the device within the specified temperature range, input voltage range, and output current range to ensure optimal performance and reliability.
To troubleshoot issues with the device, it is recommended to follow a systematic approach, starting with checking the input voltage, output voltage, and output current. Verify that the device is operating within the recommended operating conditions, and check for any signs of overheating or electrical overstress. If the issue persists, consult the datasheet and application notes for guidance, or contact Renesas technical support for further assistance.
The ISL6218CVZ-T is designed to meet EMI and EMC requirements, but it is still important to follow good design practices to minimize electromagnetic interference. This includes using a solid ground plane, keeping signal traces short and away from noise sources, and using shielding and filtering as necessary. Additionally, ensure that the device is operated within the recommended frequency range and that the output voltage is properly decoupled.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6218CVZ-T Overview

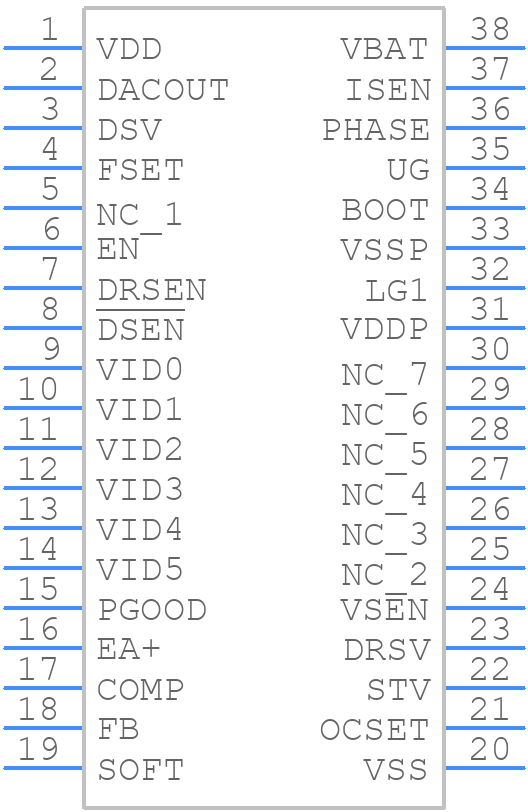

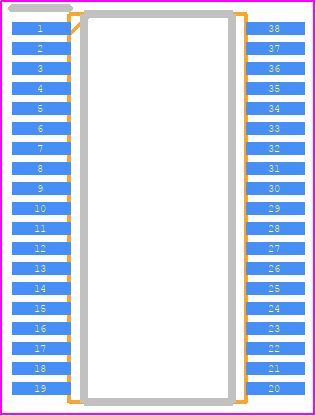

Use the download button to access the ISL6218CVZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL62,
or try a keyword search, such as Switching Regulator or Controllers
