Description:The ISL6228 IC is a dual channel synchronous-buck PWM controller featuring Intersil's Robust Ripple Regulator (R3) technology that delivers truly superior dynamic response to input voltage and output load transients. Integrated MOSFET drivers and bootstrap diodes result in fewer components and smaller implementation area. Intersil's R3 technology combines the best features of fixed-frequency and hysteretic PWMs while eliminating many of their shortcomings. R3 technology employs an innovative modulator that
Renesas provides a recommended PCB layout in the ISL6228HRTZ evaluation board user manual, which includes guidelines for component placement, thermal management, and routing. It's essential to follow these guidelines to ensure optimal performance and minimize noise.
The datasheet provides a list of recommended external components, including capacitors, resistors, and inductors. However, the specific component values may vary depending on the application and input/output voltage requirements. Renesas also provides a component selection guide and a power supply design tool to help with this process.
The ISL6228HRTZ has an operating temperature range of -40°C to +125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management and heat sinking to prevent overheating and ensure reliable operation.
Renesas provides a troubleshooting guide in the ISL6228HRTZ datasheet and application notes, which covers common issues and their solutions. Additionally, engineers can use oscilloscopes and other diagnostic tools to identify the root cause of the problem and make adjustments to the design or component values as needed.
Yes, the ISL6228HRTZ is compatible with lead-free soldering processes and is RoHS compliant. However, it's essential to follow the recommended soldering profile and temperature guidelines to ensure reliable assembly and prevent damage to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6228HRTZ Overview

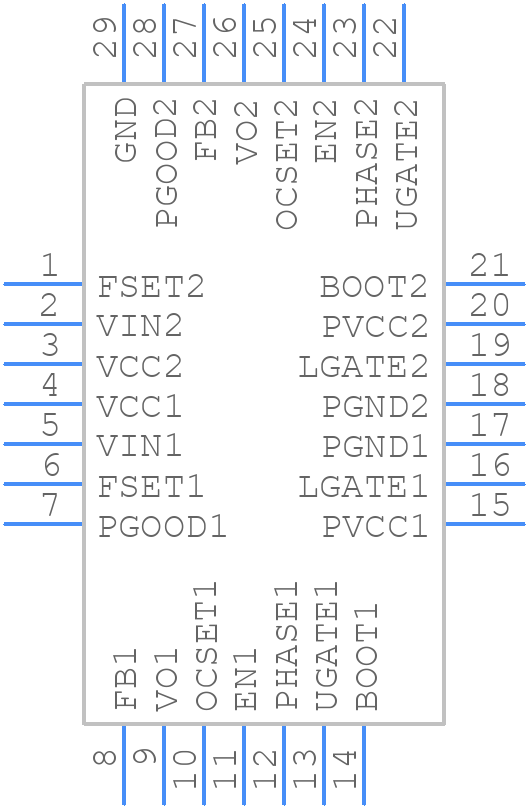

Use the download button to access the ISL6228HRTZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL62,
or try a keyword search, such as Switching Regulator or Controllers
