Description:The ISL6228 IC is a dual channel synchronous-buck PWM controller featuring Intersil's Robust Ripple Regulator (R3) technology that delivers truly superior dynamic response to input voltage and output load transients. Integrated MOSFET drivers and bootstrap diodes result in fewer components and smaller implementation area. Intersil's R3 technology combines the best features of fixed-frequency and hysteretic PWMs while eliminating many of their shortcomings. R3 technology employs an innovative modulator that
The recommended layout and placement for the ISL6228IRTZ-T can be found in the application note AN1443 from Renesas Electronics Corporation. It provides guidelines for PCB layout, component placement, and thermal management to ensure optimal performance and reliability.
The selection of input and output capacitors for the ISL6228IRTZ-T depends on the specific application requirements. Renesas provides a capacitor selection guide in the datasheet, which recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. Additionally, the application note AN1443 provides more detailed guidance on capacitor selection and placement.
The maximum ambient temperature range for the ISL6228IRTZ-T is -40°C to +85°C. However, the device can operate up to +100°C with derating. It's essential to ensure proper thermal management and heat sinking to maintain the device within the recommended operating temperature range.
Renesas provides a troubleshooting guide in the application note AN1443, which covers common issues and their solutions. Additionally, engineers can use tools such as oscilloscopes and thermal imaging cameras to diagnose and debug issues with the ISL6228IRTZ-T. It's also recommended to consult the datasheet and contact Renesas support for further assistance.
Yes, the ISL6228IRTZ-T is compatible with lead-free soldering processes. Renesas ensures that their devices meet the requirements of the RoHS (Restriction of Hazardous Substances) directive and are compatible with lead-free soldering processes.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6228IRTZ-T Overview

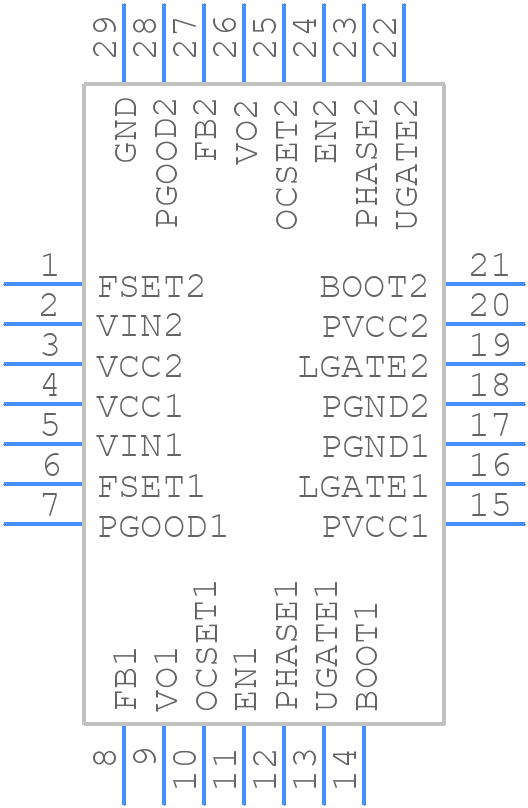

Use the download button to access the ISL6228IRTZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL62,
or try a keyword search, such as Switching Regulator or Controllers
