ISL6236IRZAR5281 footprint, schematic symbol and 3D model by Renesas Electronics

ISL6236IRZAR5281 - Renesas Electronics

Description: The ISL6236 dual step-down, switch-mode power-supply (SMPS) controller generates logic-supply voltages in battery-powered systems. The ISL6236 include two pulse-width modulation (PWM) controllers, 5V/3. 3V and 1. 5V/1. 05V. The output of SMPS1 can also be adjusted from 0. 7V to 5. 5V. The SMPS2 output can be adjusted from 0V to 2. 5V by setting REFIN2 voltage. An optional external charge pump can be monitored through SECFB. This device features a linear regulator providing 3. 3V/5V, or adjustable from 0. 7V

Download ISL6236IRZAR5281 Model

Schematic
symbols

PCB
footprints

3D
models

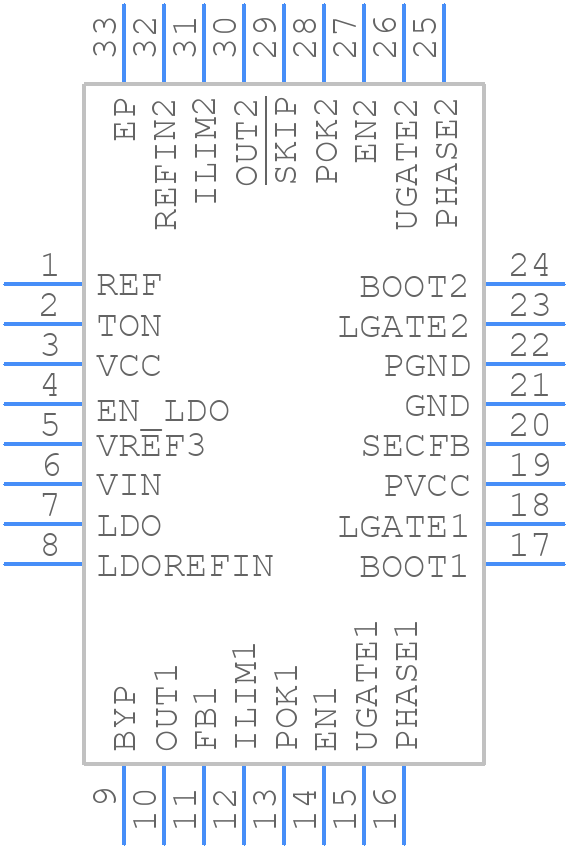

Symbol

click to zoom

PCB Footprints

ISL6236IRZAR5281 - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L32.5x5B

click to zoom

3D Models

ISL6236IRZAR5281 - Renesas Electronics - 3D model - Quad Flat No-Lead - L32.5x5B

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ISL6236IRZAR5281
Part Number ISL6236IRZAR5281
Manufacturer Renesas Electronics
Pin Count 33
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - L32.5x5B
Released Date Mar 18, 2021
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

ISL6236IRZAR5281 Details

Manufacturer Part Number:
ISL6236IRZAR5281
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

ISL6236IRZAR5281 Overview

Use the download button to access the ISL6236IRZAR5281 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ISL62, or try a keyword search, such as Switching Regulator or Controllers
