ISL62391LOEVAL1Z footprint, schematic symbol and 3D model by Renesas Electronics

ISL62391LOEVAL1Z - Renesas Electronics

Description: The ISL62391LOEVAL1Z evaluation board is used to demonstrate the performance of the ISL62391 triple-output power supply controller. The ISL62391 controller includes two pulse width modulation (PWM) controllers featured with Renesas' patented R3™ technology, output adjustable from 0.6V to 5.5V, and a linear regulator (LDO3) that generates a fixed 3.3V output and can deliver up to 100mA.The evaluation board includes two enable switches, an LED power-good (PGOOD) indicator and various test points. Each switchi

Download ISL62391LOEVAL1Z Model

Schematic
symbols

PCB
footprints

3D
models

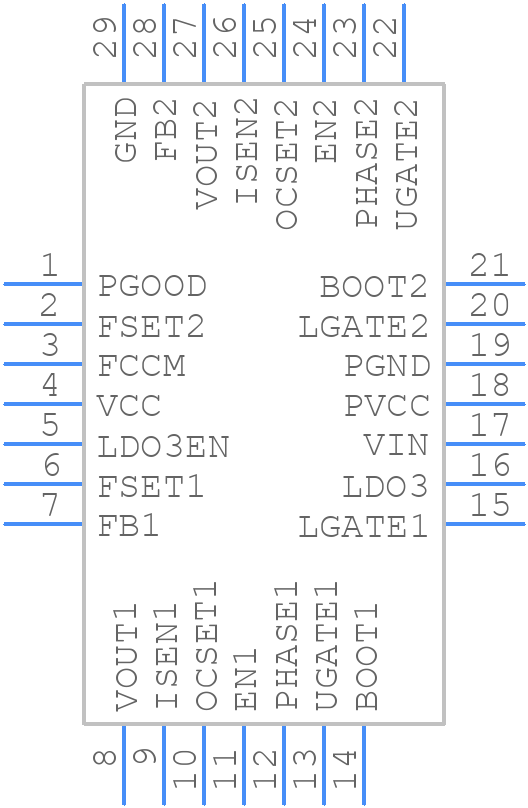

Symbol

click to zoom

PCB Footprints

ISL62391LOEVAL1Z - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L28.4x4-1

click to zoom

3D Models

ISL62391LOEVAL1Z - Renesas Electronics - 3D model - Quad Flat No-Lead - L28.4x4-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ISL62391LOEVAL1Z
Part Number ISL62391LOEVAL1Z
Manufacturer Renesas Electronics
Pin Count 29
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - L28.4x4-1
Released Date Apr 3, 2021
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

ISL62391LOEVAL1Z Details

Manufacturer Part Number:
ISL62391LOEVAL1Z
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

ISL62391LOEVAL1Z Overview

Use the download button to access the ISL62391LOEVAL1Z schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ISL62, or try a keyword search, such as Switching Regulator or Controllers
