Description:The ISL6261A is a single-phase buck regulator implementing lntel® IMVP-6® protocol, with embedded gate drivers. lntel® Mobile Voltage Positioning (IMVP) is a smart voltage regulation technology effectively reducing power dissipation in lntel® Pentium processors. The heart of the ISL6261A is the patented R3 Technology™, Intersil's Robust Ripple Regulator modulator. Compared with the traditional multi-phase buck regulator, the R3 Technology™ has faster transient response. This is due to the R3 modulator comma
The recommended layout for the ISL6261AIRZ involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it is recommended to place the output capacitors close to the VOUT pin and to use a separate ground plane for the output stage.
To select the right inductor for the ISL6261AIRZ, consider the following factors: inductance value, current rating, and DC resistance. The inductance value should be chosen based on the desired switching frequency and output voltage. The current rating should be higher than the maximum output current, and the DC resistance should be as low as possible to minimize losses.
The maximum junction temperature for the ISL6261AIRZ is 150°C. It is recommended to keep the junction temperature below 125°C for optimal performance and reliability.
To troubleshoot issues with the ISL6261AIRZ, start by checking the input and output voltages, and the current drawn from the input source. Verify that the component values and layout meet the recommended specifications. Use an oscilloscope to check for oscillations or ringing on the output voltage and current waveforms. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown.
The ISL6261AIRZ is rated for operation up to 105°C ambient temperature. However, it is recommended to derate the output current and voltage according to the temperature derating curve provided in the datasheet. Additionally, ensure that the device is properly heatsinked and that the thermal design is adequate for the specific application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6261AIRZ Overview

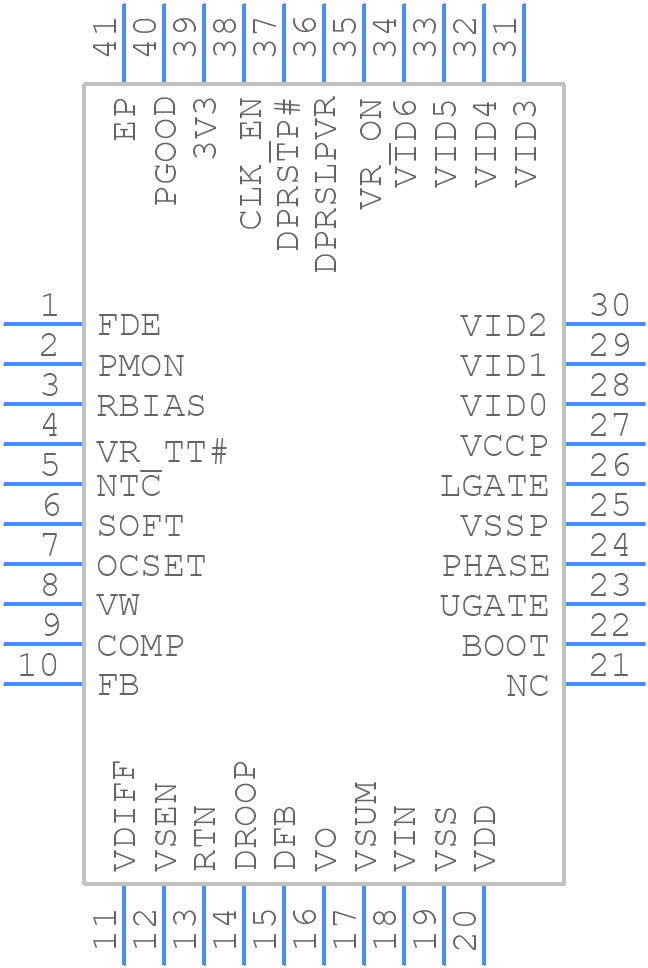

Use the download button to access the ISL6261AIRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL62,
or try a keyword search, such as Switching Regulator or Controllers
