Description:The ISL6262 is a two-phase buck converter regulator implementing Intel® IMVP-6 protocol, with embedded gate drivers. The two-phase buck converter uses two interleaved channels to effectively double the output voltage ripple frequency and thereby reduce output voltage ripple amplitude with fewer components, lower component cost, reduced power dissipation, and smaller real estate area. The heart of the ISL6262 is R3 Technology™, Intersil's Robust Ripple Regulator modulator. Compared with the traditional multi
The recommended PCB layout for optimal performance involves keeping the power traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the IC. Additionally, it's recommended to use a separate power plane for the high-current paths and to minimize the loop area of the current sense lines.
To select the right inductor, consider the maximum current rating, inductance value, and DC resistance. The inductor should be able to handle the maximum output current, and the inductance value should be chosen based on the switching frequency and output voltage. The DC resistance should be low to minimize power loss.
The maximum junction temperature that the ISL6262IRZ-T can handle is 150°C. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
To troubleshoot issues with the IC, start by checking the PCB layout and ensuring that it follows the recommended layout guidelines. Next, verify that the input and output capacitors are properly selected and placed. Check the inductor selection and ensure that it's suitable for the application. Finally, use an oscilloscope to measure the voltage and current waveforms and identify any anomalies.
Yes, the ISL6262IRZ-T is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive-grade components. However, it's essential to follow the recommended design guidelines and testing procedures to ensure the IC meets the specific requirements of the application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6262IRZ-T Overview

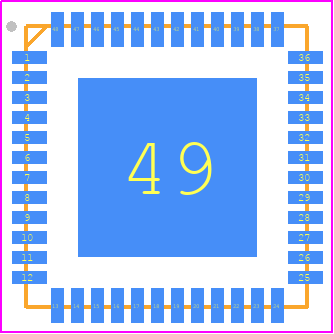

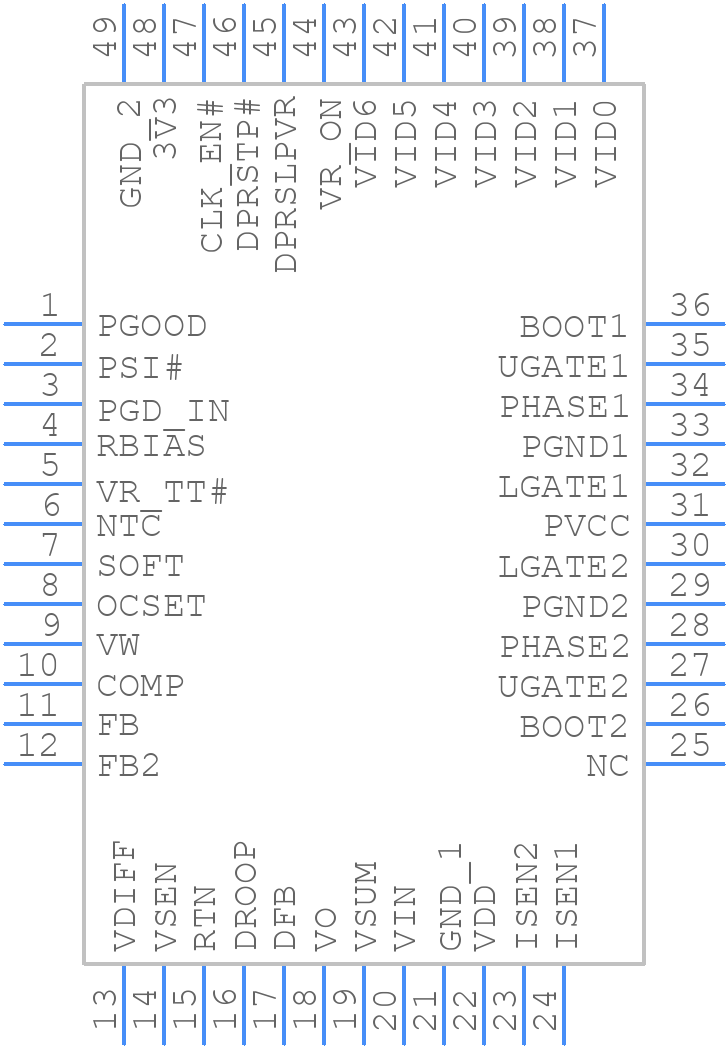

Use the download button to access the ISL6262IRZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL62,
or try a keyword search, such as Switching Regulator or Controllers
