Description:The ISL6262 is a two-phase buck converter regulator implementing Intel® IMVP-6 protocol, with embedded gate drivers. The two-phase buck converter uses two interleaved channels to effectively double the output voltage ripple frequency and thereby reduce output voltage ripple amplitude with fewer components, lower component cost, reduced power dissipation, and smaller real estate area. The heart of the ISL6262 is R3 Technology™, Intersil's Robust Ripple Regulator modulator. Compared with the traditional multi
The recommended layout and placement for the ISL6262IRZ involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it is recommended to place the input and output components on the same side of the PCB to reduce noise and improve thermal performance.
To optimize the compensation network for the ISL6262IRZ, it is recommended to follow the guidelines provided in the datasheet and application notes. This includes selecting the correct values for the compensation resistors and capacitors, and ensuring that the compensation network is properly tuned to achieve the desired loop gain and stability.
The ISL6262IRZ has a maximum junction temperature rating of 150°C. To ensure reliable operation over temperature, it is recommended to provide adequate heat sinking, use a thermally conductive PCB material, and ensure good airflow around the device. Additionally, it is recommended to follow the thermal design guidelines provided in the datasheet and application notes.
To troubleshoot common issues with the ISL6262IRZ, it is recommended to follow a systematic approach, starting with a review of the schematic and PCB layout. Check for proper component selection, layout, and placement, and ensure that the compensation network is properly tuned. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue, and consult the datasheet and application notes for guidance.
The ISL6262IRZ is designed to meet the EMI and EMC requirements of various regulatory agencies. To ensure compliance, it is recommended to follow the guidelines provided in the datasheet and application notes, including the use of proper shielding, filtering, and layout techniques. Additionally, it is recommended to perform EMI and EMC testing to ensure compliance with regulatory requirements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6262IRZ Overview

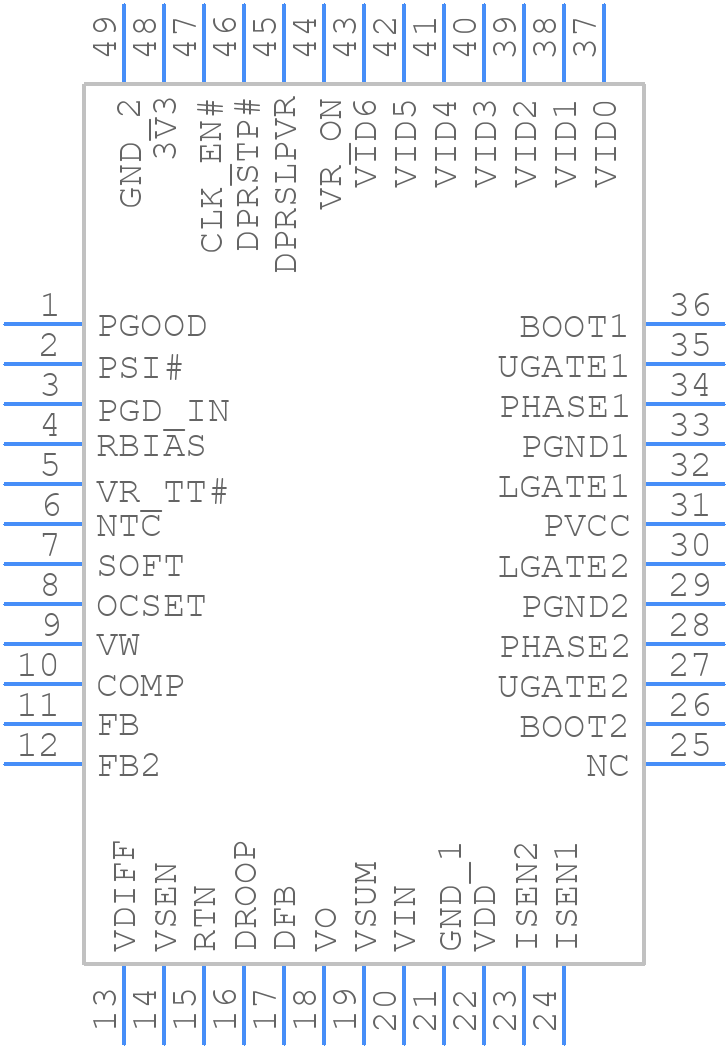

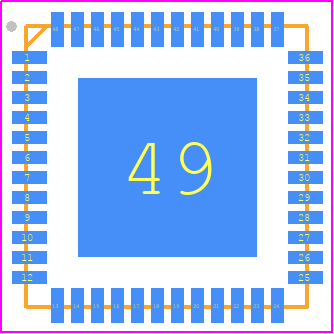

Use the download button to access the ISL6262IRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL62,
or try a keyword search, such as Switching Regulator or Controllers
