Description:The ISL6266 and ISL6266A are two-phase buck converter regulators implementing Intel® IMVP-6 protocol with embedded gate drivers. Both converters use interleaved channels to double the output voltage ripple frequency and thereby reduce output voltage ripple amplitude with fewer components, lower component cost, reduced power dissipation, and smaller real estate area. The ISL6266A utilizes the patented R3 Technology™, Intersil's Robust Ripple Regulator modulator. Compared with traditional multiphase buck regu
The recommended PCB layout for optimal performance involves keeping the power traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the IC. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To select the right inductor, consider the maximum current rating, inductance value, and DC resistance. The inductor should be able to handle the maximum output current, and the inductance value should be chosen based on the switching frequency and output voltage. The DC resistance should be as low as possible to minimize losses.
The maximum junction temperature that the ISL6266AIRZ can handle is 150°C. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
To troubleshoot issues with the IC, start by checking the PCB layout and ensuring that it follows the recommended layout guidelines. Check the input and output voltage levels, and ensure that the input voltage is within the recommended range. Also, check the inductor and capacitor values, and ensure that they are within the recommended range. If the issue persists, consider using a scope to measure the switching node voltage and current waveforms to identify the root cause of the issue.
Yes, the ISL6266AIRZ is rated for operation up to 125°C, making it suitable for high-temperature environments. However, it's essential to ensure that the IC is properly cooled, and the junction temperature is kept below the maximum rating.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6266AIRZ Overview

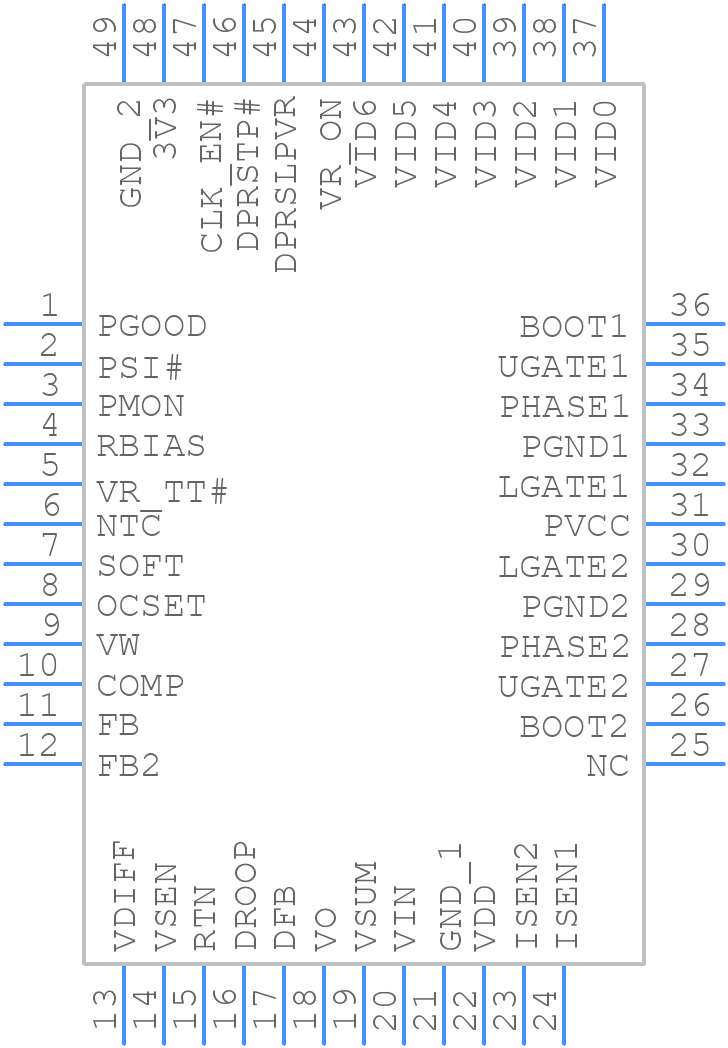

Use the download button to access the ISL6266AIRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL62,
or try a keyword search, such as Switching Regulator or Controllers
