Description:The ISL6269A IC is a Single-phase Synchronous-Buck PWM controller featuring Intersil's Robust Ripple Regulator R3™ Technology that delivers truly superior dynamic response to input voltage and output load transients. Integrated MOSFET drivers and bootstrap diode result in fewer components and smaller implementation area. Intersil’s R3™ Technology combines the best features of fixed-frequency PWM and hysteretic PWM while eliminating many of their shortcomings. R3™ Technology employs an innovative modulator t
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the switching components (e.g., FETs, inductors) close together and away from sensitive analog circuits. Use a star-grounding configuration to minimize noise and EMI.
The compensation network consists of RCOMP, CCOMP, and RFB. Optimize these components by following the datasheet's guidelines and using simulation tools like SPICE or LTspice. Start with the recommended values and adjust them based on the specific application's requirements.
The maximum allowed input voltage ripple is 10% of the nominal input voltage. Exceeding this limit may affect the converter's stability and efficiency. Use input filtering or a pre-regulator to reduce the input voltage ripple if necessary.
The ISL6269ACRZ is rated for operation up to 105°C. However, the device's performance and reliability may degrade at high temperatures. Ensure proper thermal design, including heat sinking and airflow, to maintain a safe operating temperature.
Follow proper PCB layout and design guidelines, use shielding and filtering, and ensure that the converter is placed in a metal enclosure. Additionally, use EMI filters and common-mode chokes to reduce electromagnetic interference.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6269ACRZ Overview

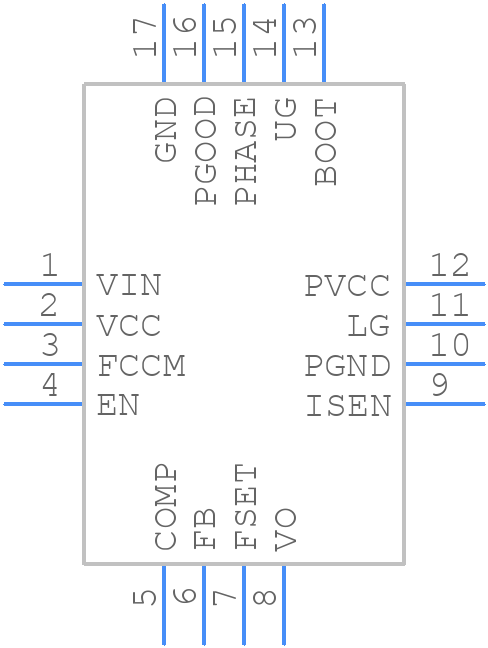

Use the download button to access the ISL6269ACRZ schematic symbol, PCB footprint, and 3D model.
