Description:The ISL6269A IC is a Single-phase Synchronous-Buck PWM controller featuring Intersil's Robust Ripple Regulator R3™ Technology that delivers truly superior dynamic response to input voltage and output load transients. Integrated MOSFET drivers and bootstrap diode result in fewer components and smaller implementation area. Intersil’s R3™ Technology combines the best features of fixed-frequency PWM and hysteretic PWM while eliminating many of their shortcomings. R3™ Technology employs an innovative modulator t
The recommended PCB layout for optimal performance involves keeping the power traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the IC. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To select the right inductor, consider the maximum current rating, inductance value, and DC resistance. The inductor should be able to handle the maximum output current, and the inductance value should be within the recommended range specified in the datasheet. Additionally, consider the physical size and cost of the inductor.
The maximum junction temperature that the ISL6269AIRZ can handle is 125°C. However, it's recommended to keep the junction temperature below 100°C for optimal performance and reliability.
To troubleshoot issues with the IC, start by checking the PCB layout and ensuring that it meets the recommended layout guidelines. Next, verify that the input and output capacitors are properly selected and placed. Check the inductor selection and ensure that it's within the recommended range. Finally, use an oscilloscope to measure the output voltage and current waveforms to identify any signs of oscillation or instability.
Yes, the ISL6269AIRZ is rated for operation up to 105°C ambient temperature. However, it's essential to ensure that the IC's junction temperature remains below 125°C to prevent damage or malfunction. This may require additional thermal management, such as heat sinks or thermal interfaces, depending on the specific application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6269AIRZ Overview

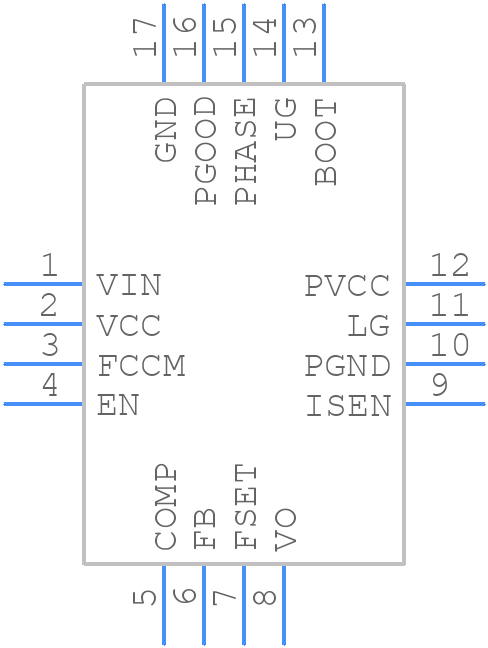

Use the download button to access the ISL6269AIRZ schematic symbol, PCB footprint, and 3D model.
