ISL6269BIRZ - Renesas Electronics

Description: The ISL6269B IC is a Single-phase Synchronous-Buck PWM controller featuring Intersil's Robust Ripple Regulator R3™ Technology that delivers truly superior dynamic response to input voltage and output load transients. Integrated MOSFET drivers and bootstrap diode result in fewer components and smaller implementation area. Intersil’s R3™ Technology combines the best features of fixed-frequency PWM and hysteretic PWM while eliminating many of their shortcomings. R3™ Technology employs an innovative modulator t

Download ISL6269BIRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

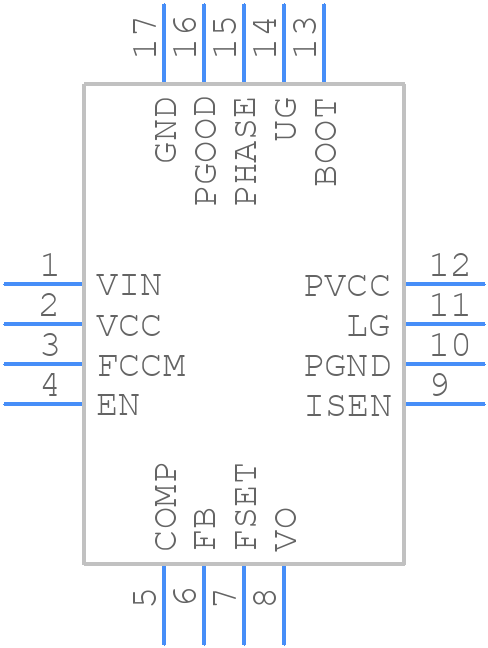

ISL6269BIRZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL6269BIRZ - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L16.4x4
click to zoom
3D Models
ISL6269BIRZ - Renesas Electronics - 3D model - Quad Flat No-Lead - L16.4x4
click to zoom

ISL6269BIRZ Details

  • Manufacturer Part Number:

    ISL6269BIRZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    L16.4X4

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    25 V

  • Input Voltage-Min:

    5 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    25 A

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    600 kHz

  • Technology:

    MOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ISL6269BIRZ Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note AN1866, which includes guidelines for component placement, thermal management, and routing to minimize noise and ensure optimal performance.
  • The selection of output filter components depends on the specific application requirements. Renesas provides a component selection guide in their application note AN1866, which includes guidelines for choosing the right inductors, capacitors, and resistors for the output filter.
  • The maximum allowed input voltage ripple for the ISL6269BIRZ is 10% of the nominal input voltage. Exceeding this limit may affect the regulator's performance and stability.
  • The ISL6269BIRZ has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCSET pin and the output voltage. The value of the resistor determines the overcurrent threshold. Renesas provides a detailed explanation of the overcurrent protection feature in their datasheet.
  • The thermal derating curve for the ISL6269BIRZ is provided in the datasheet, which shows the maximum allowed power dissipation as a function of ambient temperature. Engineers can use this curve to determine the maximum allowed power dissipation for their specific application.
