Description:The ISL6271A is a versatile power management IC (PMIC) designed for the Xscale type of processors. The device integrates three regulators, two fault indicators and an I2C bus for communication with a host microprocessor. Two of the three regulators function as low power, low drop out regulators, designed to power SRAM and phase-lock loop circuitry internal to the Xscale processor. The third regulator uses a proprietary switch-mode topology to power the processor core and facilitate Dynamic Voltage Managemen
A good PCB layout for the ISL6271ACRZ-T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input voltage and to keep the output voltage traces away from the input voltage traces to minimize noise coupling.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also recommended to add a small resistor (around 1-2 ohms) in series with the output capacitor to dampen any potential oscillations.
The ISL6271ACRZ-T can operate at ambient temperatures up to 85°C, but it's recommended to derate the output current and input voltage according to the thermal derating curve provided in the datasheet to ensure reliable operation.
Yes, the ISL6271ACRZ-T is qualified to the AEC-Q100 standard for automotive applications and is suitable for use in high-reliability applications. However, it's recommended to consult with Renesas Electronics Corporation for specific requirements and to ensure that the device meets the necessary qualifications and certifications for the specific application.
To troubleshoot issues with the ISL6271ACRZ-T, start by checking the input voltage, output voltage, and output current to ensure they are within the recommended specifications. Check the PCB layout and component values to ensure they match the recommended values in the datasheet. Use an oscilloscope to check for any oscillations or noise on the output voltage. If the issue persists, consult the datasheet and application notes for troubleshooting guides or contact Renesas Electronics Corporation for technical support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6271ACRZ-T Overview

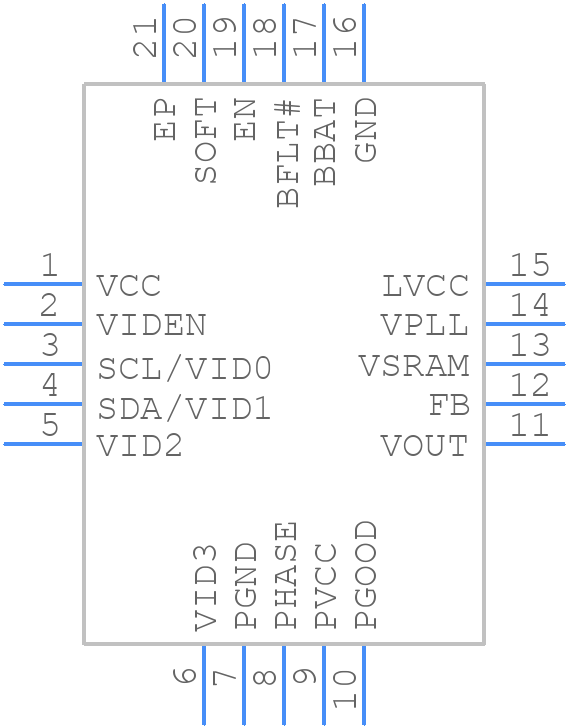

Use the download button to access the ISL6271ACRZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL62,
or try a keyword search, such as Switching Regulator or Controllers
