ISL6271ACRZ - Renesas Electronics

Description: The ISL6271A is a versatile power management IC (PMIC) designed for the Xscale type of processors. The device integrates three regulators, two fault indicators and an I2C bus for communication with a host microprocessor. Two of the three regulators function as low power, low drop out regulators, designed to power SRAM and phase-lock loop circuitry internal to the Xscale processor. The third regulator uses a proprietary switch-mode topology to power the processor core and facilitate Dynamic Voltage Managemen

Download ISL6271ACRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

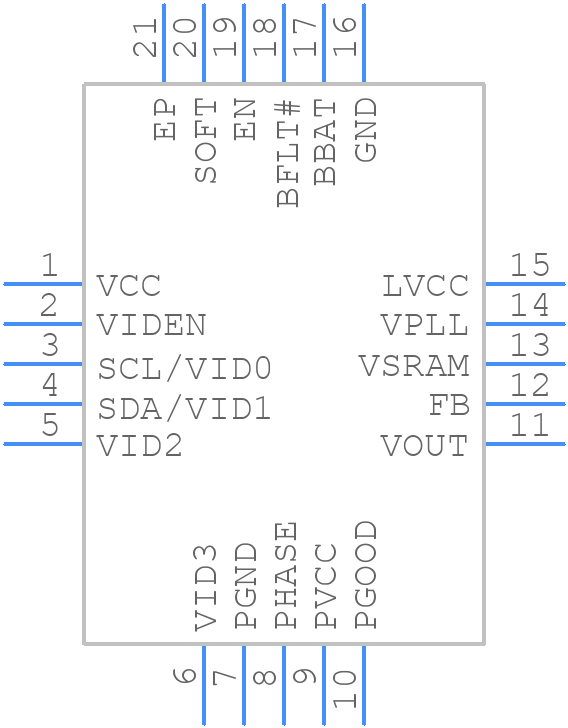

ISL6271ACRZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL6271ACRZ - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L20.4x4
click to zoom
3D Models
ISL6271ACRZ - Renesas Electronics - 3D model - Quad Flat No-Lead - L20.4x4
click to zoom

ISL6271ACRZ Details

  • Manufacturer Part Number:

    ISL6271ACRZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Pin Count:

    20

  • Manufacturer Package Code:

    L20.4X4

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2017-11-15

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30
