Description:The ISL62771 is fully compliant with AMD Fusion SVI 2. 0 and provides a complete solution for microprocessor and graphics processor core power. The ISL62771 controller supports two Voltage Regulators (VRs) with three integrated gate drivers. The Core VR supports 2-, or 1-phase configurations while the Northbridge VR supports 1-phase operation. The two VRs share a serial control bus to communicate with the AMD CPU and achieve lower cost and smaller board area compared with two-chip solutions. The PWM modulat
A good PCB layout for the ISL62771IRTZ-T involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the stability of the output voltage, it's essential to choose the right output capacitor value and type. A minimum capacitance of 10uF is recommended, and the capacitor should have a low ESR (Equivalent Series Resistance) to minimize voltage ripple. Additionally, the output voltage can be stabilized by adding a small ceramic capacitor (e.g., 1uF) in parallel with the main output capacitor.
The maximum ambient temperature range for the ISL62771IRTZ-T is -40°C to +85°C. However, the device can operate at a higher temperature range with derating. It's essential to ensure that the device does not exceed the maximum junction temperature (TJ) of 150°C.
The power dissipation of the ISL62771IRTZ-T can be calculated using the following formula: Pd = (Vin - Vout) x Iout x Efficiency. Where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Efficiency is the efficiency of the converter. The efficiency can be obtained from the datasheet or by measuring the input and output power.
When handling the ISL62771IRTZ-T, it's essential to take precautions to prevent damage from electrostatic discharge (ESD). Use an anti-static wrist strap or mat, and handle the device by the body or pins, avoiding touching the pins or die. Also, avoid bending or flexing the leads, and use a soldering iron with a temperature-controlled tip to prevent overheating.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL62771IRTZ-T Overview

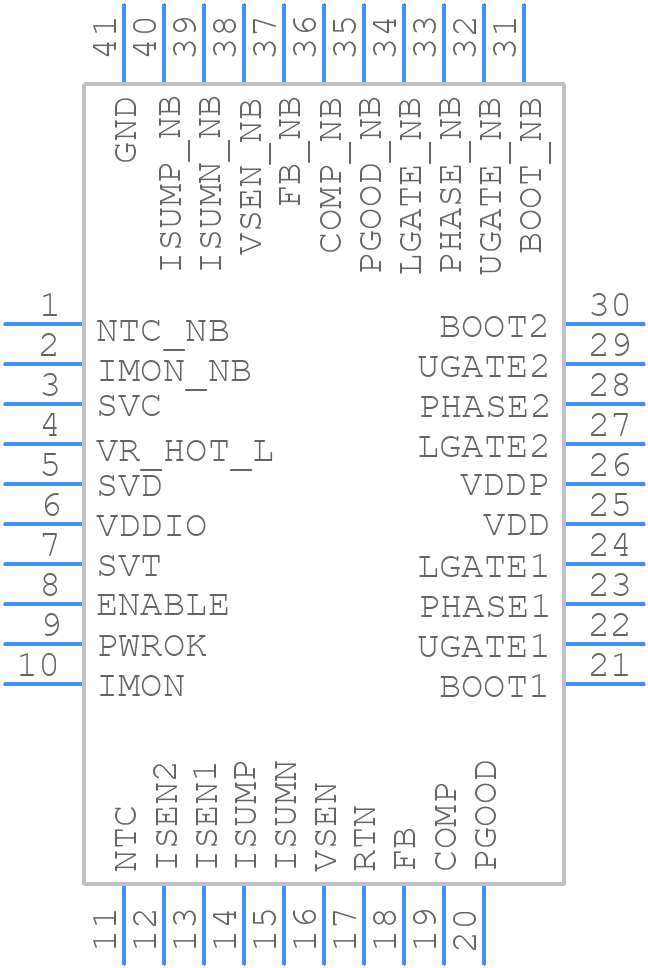

Use the download button to access the ISL62771IRTZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL62,
or try a keyword search, such as Switching Regulator or Controllers
