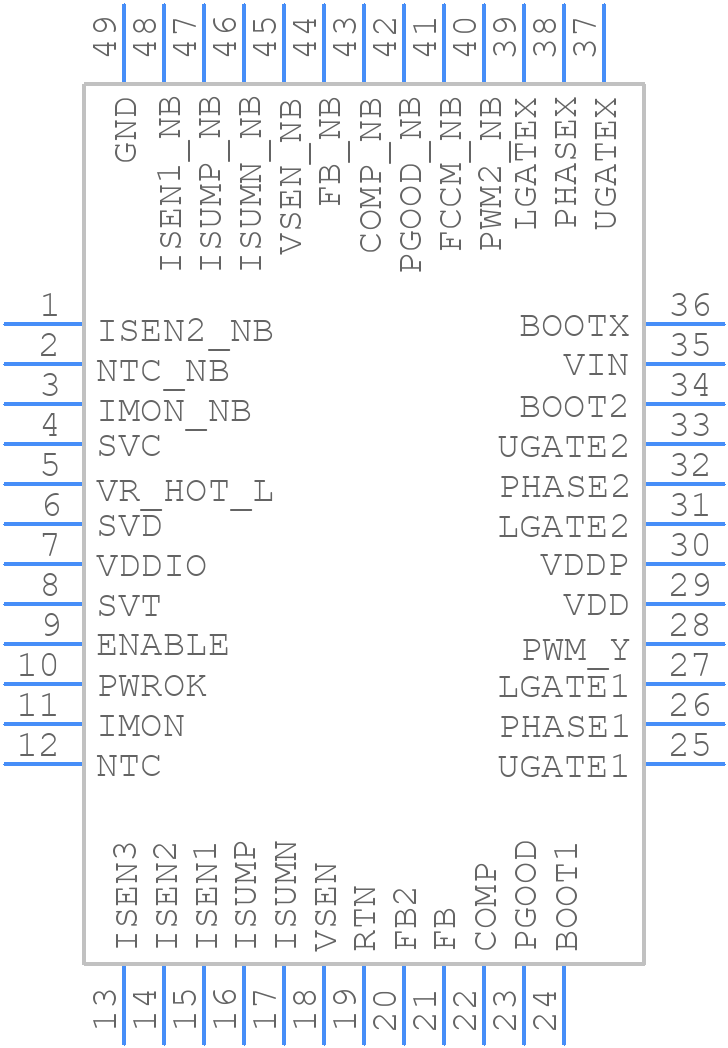

ISL62773IRZ-T - Renesas Electronics

ISL62773IRZ-T Details

• Manufacturer Part Number:

  ISL62773IRZ-T

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFN

• Package Description:

  QFN-48

• Pin Count:

  48

• Manufacturer Package Code:

  L48.6X6B

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Analog IC - Other Type:

  SWITCHING CONTROLLER

• Control Mode:

  VOLTAGE-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  5.25 V

• Input Voltage-Min:

  4.75 V

• Input Voltage-Nom:

  5 V

• JESD-30 Code:

  S-PQCC-N48

• JESD-609 Code:

  e3

• Length:

  6 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  48

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Voltage-Max:

  1.55 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC48,.24SQ,16

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1 mm

• Supply Current-Max (Isup):

  11 mA

• Surface Mount:

  YES

• Switcher Configuration:

  BOOST

• Switching Frequency-Max:

  450 kHz

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  6 mm
