ISL62773IRZ - Renesas Electronics

Description: The ISL62773 is fully compliant with AMD Fusion™ SVI 2. 0 and provides a complete solution for desktop microprocessor and graphics processor core power. The ISL62773 controller supports two Voltage Regulators (VRs) with three integrated gate drivers and two optional external drivers for maximum flexibility. The Core VR can be configured for 3-, 2-, or 1-phase operation while the Northbridge VR supports 2- or 1-phase configurations. The two VRs share a serial control bus to communicate with the AMD CPU and a

Download ISL62773IRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

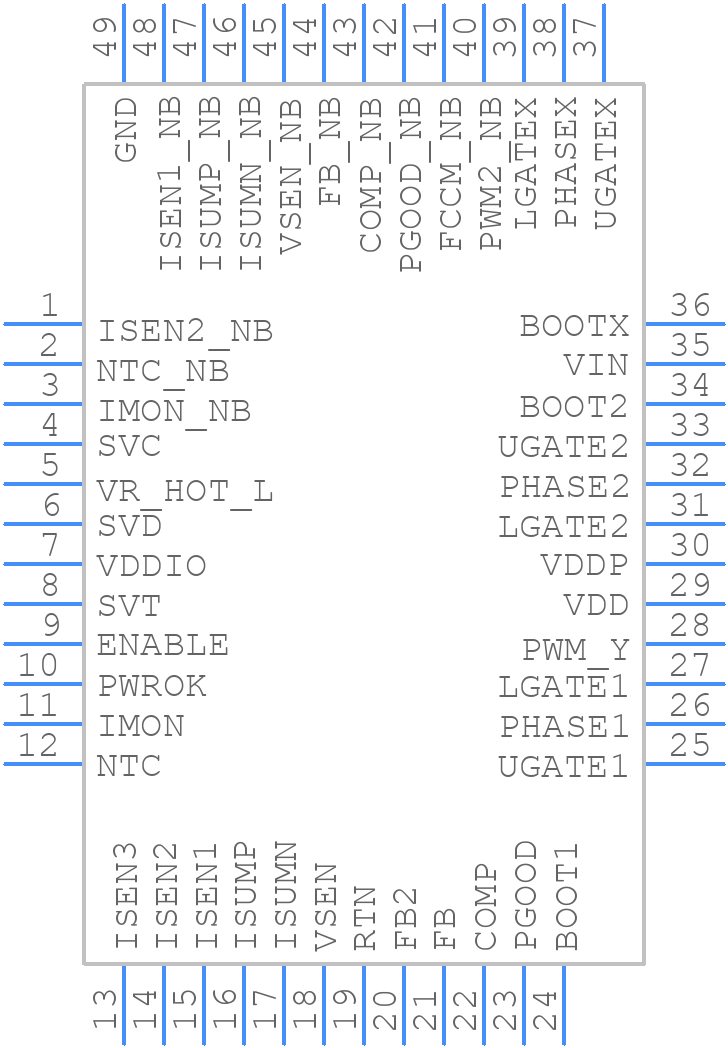

Symbol
ISL62773IRZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL62773IRZ - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48 Ld 6x6 QFN-
click to zoom
3D Models
ISL62773IRZ - Renesas Electronics - 3D model - Quad Flat No-Lead - 48 Ld 6x6 QFN-
click to zoom

ISL62773IRZ Details

  • Manufacturer Part Number:

    ISL62773IRZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    QFN-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    L48.6X6B

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.25 V

  • Input Voltage-Min:

    4.75 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    450 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

ISL62773IRZ Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note AN1995, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The selection of the inductor depends on the output current, output voltage, and switching frequency. Renesas provides an inductor selection guide in their application note AN1995, which includes a list of recommended inductors and their corresponding characteristics.
  • The maximum junction temperature (Tj) for the ISL62773IRZ is 125°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 100°C for optimal reliability and performance.
  • While the ISL62773IRZ can operate up to 125°C, it's essential to consider the thermal management and derating of the device for high-temperature applications. Renesas provides thermal derating curves in the datasheet to help with this calculation.
  • Renesas provides EMC guidelines in their application note AN1995, which includes recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference (EMI) and ensure compliance with EMC standards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL62773IRZ Overview

Use the download button to access the ISL62773IRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL62, or try a keyword search, such as Switching Regulator or Controllers
