Description:The ISL62881C provides a complete solution for microprocessor and graphic processor core power supply with its integrated gate drive. Based on Renesas' Robust Ripple regulator (R3™) technology, the PWM modulator compared to traditional modulators, has faster transient settling time, variable switching frequency during load transients and has improved light load efficiency with its ability to automatically change switching frequency. Fully compliant with IMVP6. 5™, the ISL62881C is easily configurable as a C
A good PCB layout is crucial for the ISL62881CIRTZ. Renesas recommends a 4-layer board with a solid ground plane, and to keep the high-current paths short and wide. Additionally, decoupling capacitors should be placed close to the IC, and the input and output capacitors should be placed near the corresponding pins.
The selection of external components such as inductors, capacitors, and resistors depends on the specific application and design requirements. Renesas provides a component selection guide in the datasheet, and engineers can also use online tools and simulation software to aid in the selection process.
The ISL62881CIRTZ has an operating temperature range of -40°C to +105°C, but the maximum junction temperature (TJ) should not exceed 125°C. Engineers should ensure proper thermal design and heat dissipation to prevent overheating.
Common issues with the ISL62881CIRTZ can be troubleshooted by checking the PCB layout, component selection, and soldering quality. Engineers can also use oscilloscopes and other diagnostic tools to identify the root cause of the issue. Renesas provides application notes and technical support to aid in troubleshooting.
Yes, the ISL62881CIRTZ is compatible with lead-free soldering processes. Renesas ensures that their products meet the requirements of the RoHS (Restriction of Hazardous Substances) directive, and the ISL62881CIRTZ can be soldered using lead-free soldering techniques.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL62881CIRTZ Overview

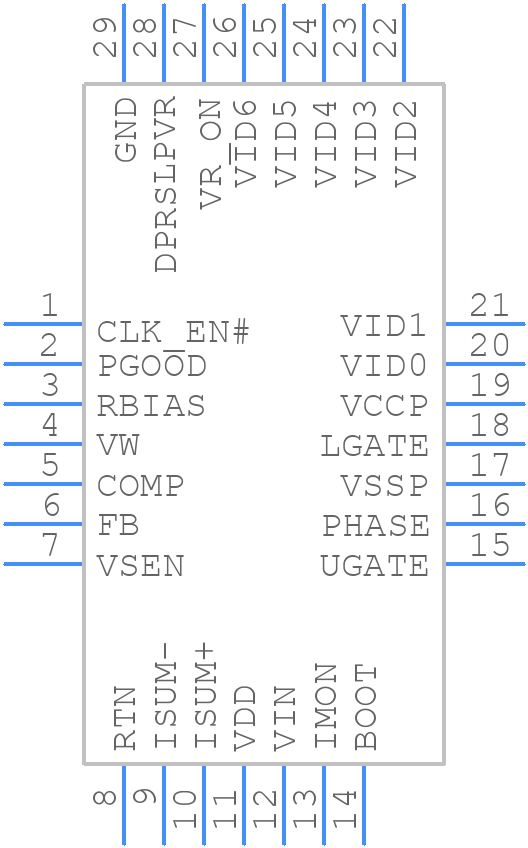

Use the download button to access the ISL62881CIRTZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL62,
or try a keyword search, such as Switching Regulator or Controllers
