Description:The ISL6306 controls microprocessor core voltage regulation by driving up to 4 synchronous-rectified buck channels in parallel. Multiphase buck converter architecture uses interleaved timing to multiply channel ripple frequency and reduce input and output ripple currents. Lower ripple results in fewer components, lower component cost, reduced power dissipation, and smaller implementation area. Microprocessor loads can generate load transients with extremely fast edge rates. The ISL6306 features a high bandw
The recommended PCB layout for optimal performance involves keeping the high-frequency switching nodes (e.g., SW node) away from sensitive analog nodes, using a solid ground plane, and minimizing the loop area of the power stage. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
Optimizing the compensation network involves selecting the right values for the compensation components (R1, R2, C1, and C2) based on the specific application requirements. A good starting point is to use the values recommended in the datasheet, and then adjust them based on the desired transient response and stability margins.
The maximum allowed input voltage ripple for the ISL6306CRZ is not explicitly specified in the datasheet. However, as a general rule, it's recommended to keep the input voltage ripple below 1% of the nominal input voltage to ensure reliable operation and minimize the risk of voltage regulator module (VRM) instability.
Yes, you can use the ISL6306CRZ with a different inductor value, but you'll need to re-optimize the compensation network and ensure that the inductor value meets the minimum required inductance specified in the datasheet. Additionally, you may need to adjust the output capacitor value and the switching frequency to maintain stability and optimal performance.
To troubleshoot issues with the ISL6306CRZ, start by checking the PCB layout and ensuring that it meets the recommended layout guidelines. Then, verify that the input voltage, output voltage, and switching frequency are within the specified ranges. Use an oscilloscope to monitor the voltage and current waveforms, and check for signs of oscillations or instability. Finally, consult the datasheet and application notes for troubleshooting guides and tips.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6306CRZ Overview

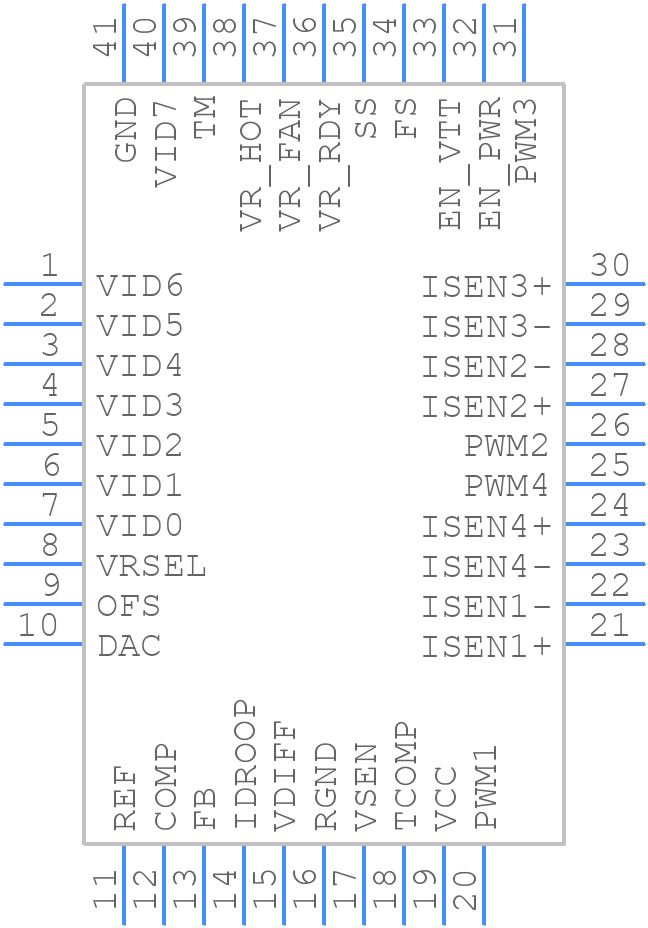

Use the download button to access the ISL6306CRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL63,
or try a keyword search, such as Switching Regulator or Controllers
