Description:The ISL6312A four-phase PWM control IC provides a precision voltage regulation system for advanced microprocessors. The integration of power MOSFET drivers into the controller IC marks a departure from the separate PWM controller and driver configuration of previous multiphase product families. By reducing the number of external parts, this integration is optimized for a cost and space saving power management solution. One outstanding feature of this controller IC is its multi-processor compatibility, allow
The recommended PCB layout for optimal performance involves keeping the high-current paths short and wide, using a solid ground plane, and placing the input and output capacitors close to the IC. A 4-layer board with a dedicated power plane and a solid ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
The selection of input and output capacitors depends on the specific application requirements. For the ISL6312ACRZ-T, it's recommended to use low-ESR capacitors with a voltage rating of at least 1.5 times the maximum input voltage. The output capacitor should be selected based on the output voltage ripple and transient response requirements. A general guideline is to use a 10uF to 22uF ceramic capacitor for the output.
The thermal derating for the ISL6312ACRZ-T is typically around 1.5°C/W for the junction-to-ambient thermal resistance. This means that for every 1W of power dissipation, the junction temperature will increase by 1.5°C. It's essential to ensure that the device is operated within the recommended temperature range to prevent thermal shutdown or damage.
The ISL6312ACRZ-T has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The OCP threshold can be set by selecting the appropriate resistor values. Additionally, it's recommended to use a current sense resistor in the output stage to monitor the output current and provide an additional layer of overcurrent protection.
The recommended startup sequence for the ISL6312ACRZ-T involves applying the input voltage first, followed by the enable signal. This ensures that the internal bias voltage is established before the device is enabled. It's also recommended to add a soft-start circuit to limit the inrush current during startup.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6312ACRZ-T Overview

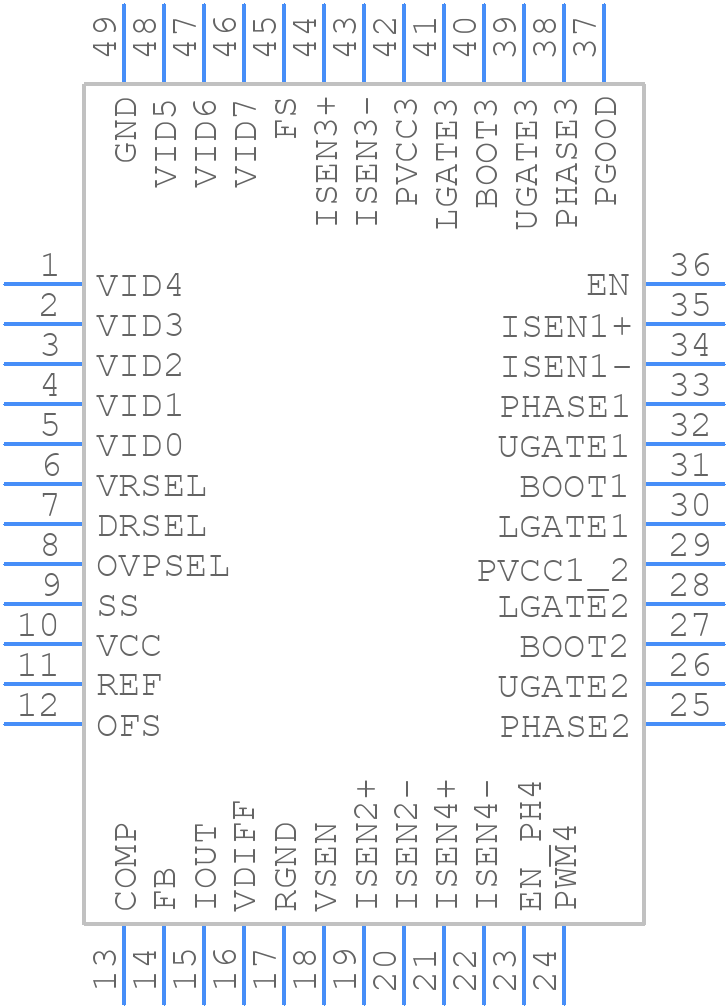

Use the download button to access the ISL6312ACRZ-T schematic symbol, PCB footprint, and 3D model.
