Description:The ISL6312 four-phase PWM control IC provides a precision voltage regulation system for advanced microprocessors. The integration of power MOSFET drivers into the controller IC marks a departure from the separate PWM controller and driver configuration of previous multiphase product families. By reducing the number of external parts, this integration is optimized for a cost and space saving power management solution. One outstanding feature of this controller IC is its multi-processor compatibility, allowi
The recommended PCB layout for the ISL6312CRZ involves keeping the high-current paths short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer board with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
To ensure the ISL6312CRZ operates within its safe operating area (SOA), you should monitor the device's junction temperature, input voltage, output current, and output voltage. You can use the device's thermal monitoring feature and adjust the operating conditions to prevent overheating, overvoltage, and overcurrent conditions.
The recommended input capacitor type for the ISL6312CRZ is a low-ESR ceramic capacitor with a value of 10uF to 22uF. This type of capacitor helps to filter out high-frequency noise and ensures stable operation of the device.
To troubleshoot the ISL6312CRZ, start by checking the input voltage, output voltage, and output current. Verify that the device is properly configured and that the input and output capacitors are properly connected. Check for any signs of overheating, such as excessive temperature or thermal shutdown. If the issue persists, consult the datasheet and application notes for further guidance.
The ISL6312CRZ is rated for operation up to 125°C, but it's recommended to derate the device's performance at high temperatures. You should ensure that the device's junction temperature remains below 125°C to prevent overheating and ensure reliable operation. You can use thermal design and heat sinking techniques to keep the device within its safe operating temperature range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6312CRZ Overview

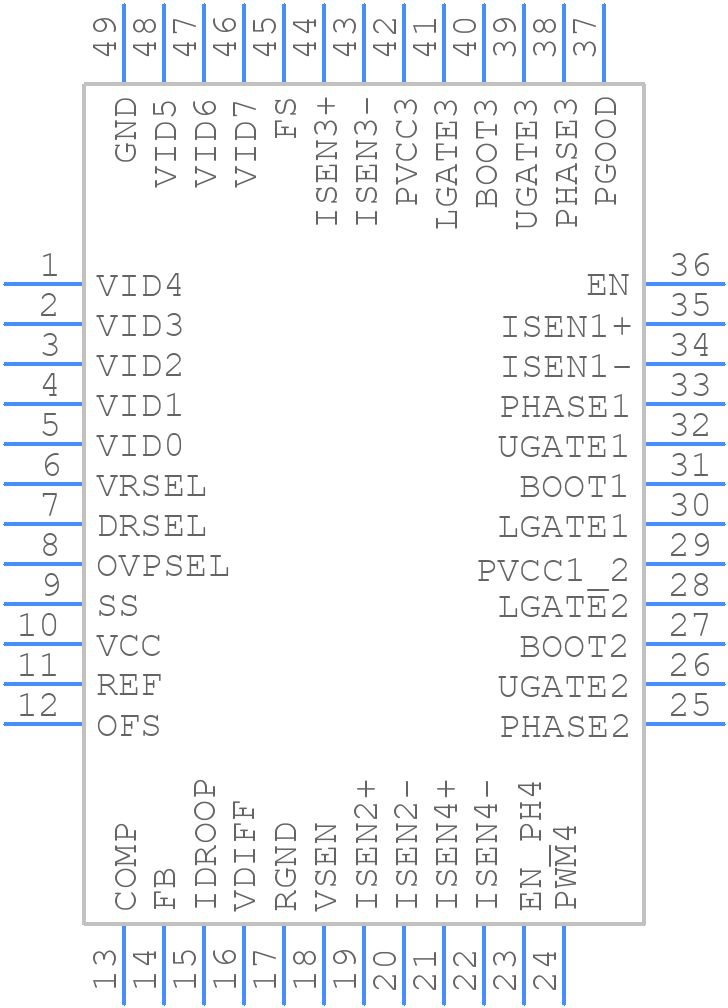

Use the download button to access the ISL6312CRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL63,
or try a keyword search, such as Switching Regulator or Controllers
