Description:The ISL6312 four-phase PWM control IC provides a precision voltage regulation system for advanced microprocessors. The integration of power MOSFET drivers into the controller IC marks a departure from the separate PWM controller and driver configuration of previous multiphase product families. By reducing the number of external parts, this integration is optimized for a cost and space saving power management solution. One outstanding feature of this controller IC is its multi-processor compatibility, allowi
A good PCB layout for the ISL6312IRZ involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the high-current paths. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure output voltage stability, it's essential to choose the right output capacitor with a low ESR (Equivalent Series Resistance) and a sufficient capacitance value. A minimum capacitance value of 22uF is recommended, and the capacitor should be placed close to the IC.
The ISL6312IRZ has an operating ambient temperature range of -40°C to +85°C. However, the maximum junction temperature (TJ) should not exceed +125°C.
Yes, the ISL6312IRZ is suitable for high-reliability applications. It's manufactured using a high-reliability process, and it's qualified to automotive and industrial standards. However, it's essential to follow proper design and manufacturing guidelines to ensure the required level of reliability.
To troubleshoot issues with the ISL6312IRZ, start by checking the input voltage, output voltage, and current. Verify that the input voltage is within the recommended range, and the output voltage is within the specified tolerance. Check for any signs of overheating, and ensure that the PCB layout is correct. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6312IRZ Overview

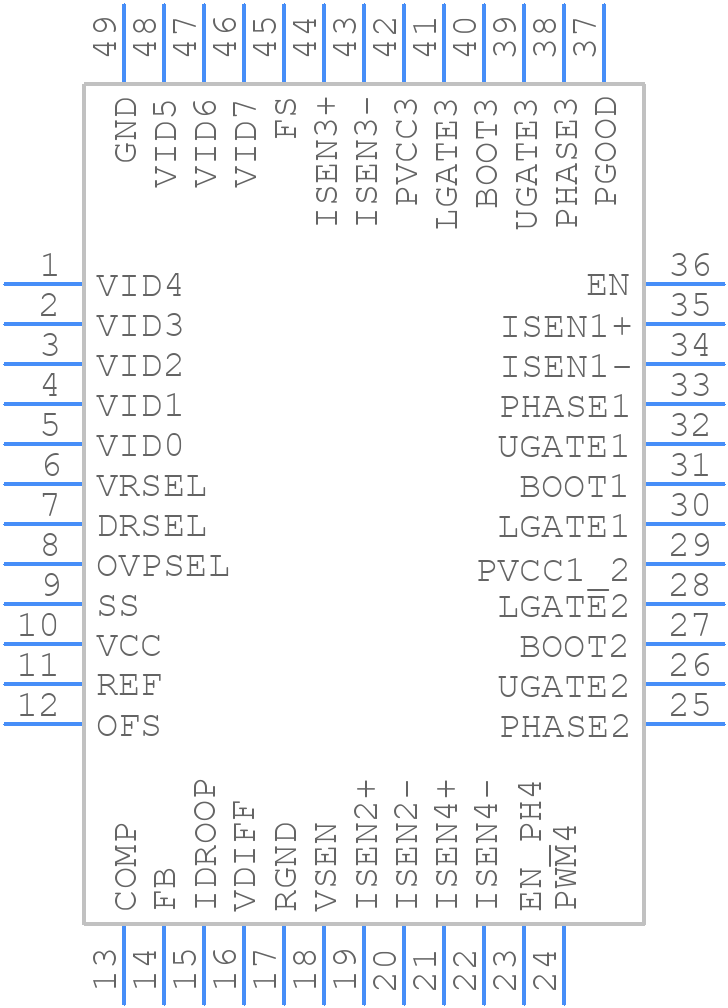

Use the download button to access the ISL6312IRZ schematic symbol, PCB footprint, and 3D model.
