ISL6313BIRZ - Renesas Electronics

Description: The ISL6313B two-phase PWM control IC provides a precision voltage regulation system for advanced microprocessors. The integration of power MOSFET drivers into the controller IC marks a departure from the separate PWM controller and driver configuration of previous multi-phase product families. By reducing the number of external parts, this integration is optimized for a cost and space saving power management solution. One outstanding feature of this controller IC is its multiprocessor compatibility, allowi

Download ISL6313BIRZ Model

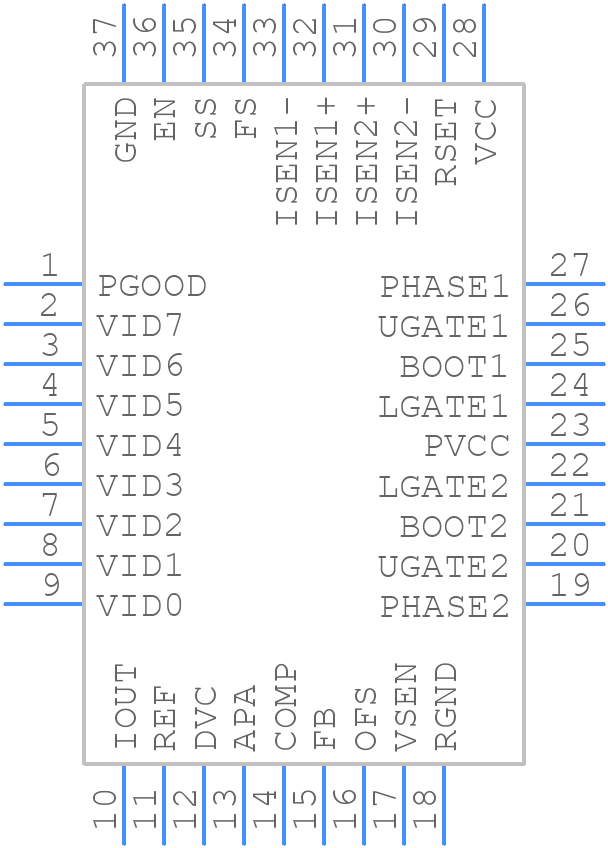

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL6313BIRZ - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - TQFN_36--
click to zoom
3D Models
ISL6313BIRZ - Renesas Electronics  - 3D model - Quad Flat No-Lead - TQFN_36--
click to zoom

ISL6313BIRZ Details

  • Manufacturer Part Number:

    ISL6313BIRZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TQFN

  • Package Description:

    TQFN-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    L36.6X6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Date Of Intro:

    2017-11-16

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT/VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.25 V

  • Input Voltage-Min:

    4.75 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-PQCC-N36

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

ISL6313BIRZ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ISL6313BIRZ involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-frequency switching nodes (e.g., LX, BST) away from sensitive analog nodes. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To select the right inductor for the ISL6313BIRZ, consider the maximum current rating, inductance value, and DC resistance (DCR). A higher inductance value can reduce ripple current, but may increase the overall solution size. A good starting point is to choose an inductor with a current rating of at least 1.5 times the maximum output current and an inductance value between 0.47μH to 1.0μH.
  • The maximum junction temperature (Tj) that the ISL6313BIRZ can operate at is 150°C. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
  • Yes, the ISL6313BIRZ is rated for operation up to 125°C ambient temperature. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal design and ensure proper heat dissipation to maintain a safe junction temperature.
  • To troubleshoot issues with the ISL6313BIRZ, start by verifying the PCB layout and component selection. Check for proper decoupling, correct component values, and adequate heat dissipation. Use an oscilloscope to measure the switching waveforms and identify any signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and optimization techniques.
