Description:The ISL6314 single-phase PWM control IC provides a precision voltage regulation system for advanced microprocessors. This controller IC maintains the same features as the multi-phase product family, but reduces the output to a single-phase, for lower current systems. By reducing the number of external parts, this integration is optimized for a cost and space saving power management solution. One outstanding feature of this controller IC is its multiprocessor compatibility, allowing it to work with both Inte
A good PCB layout for the ISL6314CRZ involves separating the power and ground planes, using a solid ground plane, and placing the input and output capacitors close to the IC. Additionally, the layout should minimize the loop area of the high-frequency currents to reduce electromagnetic interference (EMI).
The choice of input and output capacitors for the ISL6314CRZ depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be able to handle the input voltage and current, while the output capacitor should be able to handle the output voltage and current. A good starting point is to use capacitors with a capacitance value of 10-22uF and a voltage rating of 1.5-2 times the input voltage.
The maximum ambient temperature range for the ISL6314CRZ is -40°C to +85°C. However, the device can operate up to +100°C with derating. It's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
The ISL6314CRZ has a built-in overcurrent protection feature that can be enabled by connecting the OCSET pin to a resistor divider network. The resistor values should be chosen to set the overcurrent threshold to the desired value. Additionally, the device has a built-in thermal shutdown feature that will turn off the device if the junction temperature exceeds 150°C.
The recommended input voltage range for the ISL6314CRZ is 4.5V to 14V. However, the device can operate with input voltages as low as 3.3V, but with reduced performance and efficiency. It's essential to ensure that the input voltage is within the recommended range to ensure proper operation and prevent damage to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6314CRZ Overview

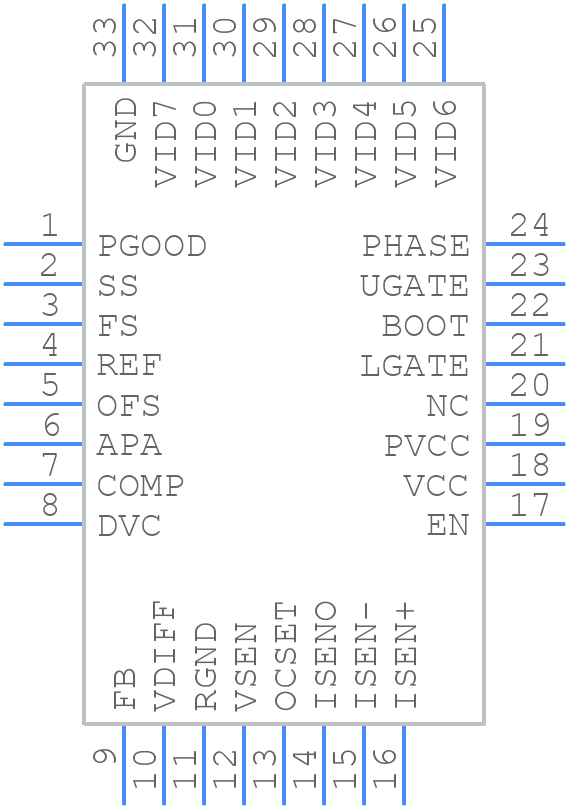

Use the download button to access the ISL6314CRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL63,
or try a keyword search, such as Switching Regulator or Controllers
